1. The voltage reference to the cell must be biased above 0V Arbitrary Ground.
- Max: There's many ways to bias the voltage - Max: can bias his B+ supply up to +600VDC - Max: As long as the wave is above 0V, you will make hydrogen - Max: When the wave levels off, no increase in hydrogen will continue. You've reached the peak voltage potential of your cell.2. No specific waveform will make more bubbles over another, until the secret is found, and you get an eruption in front of your face.

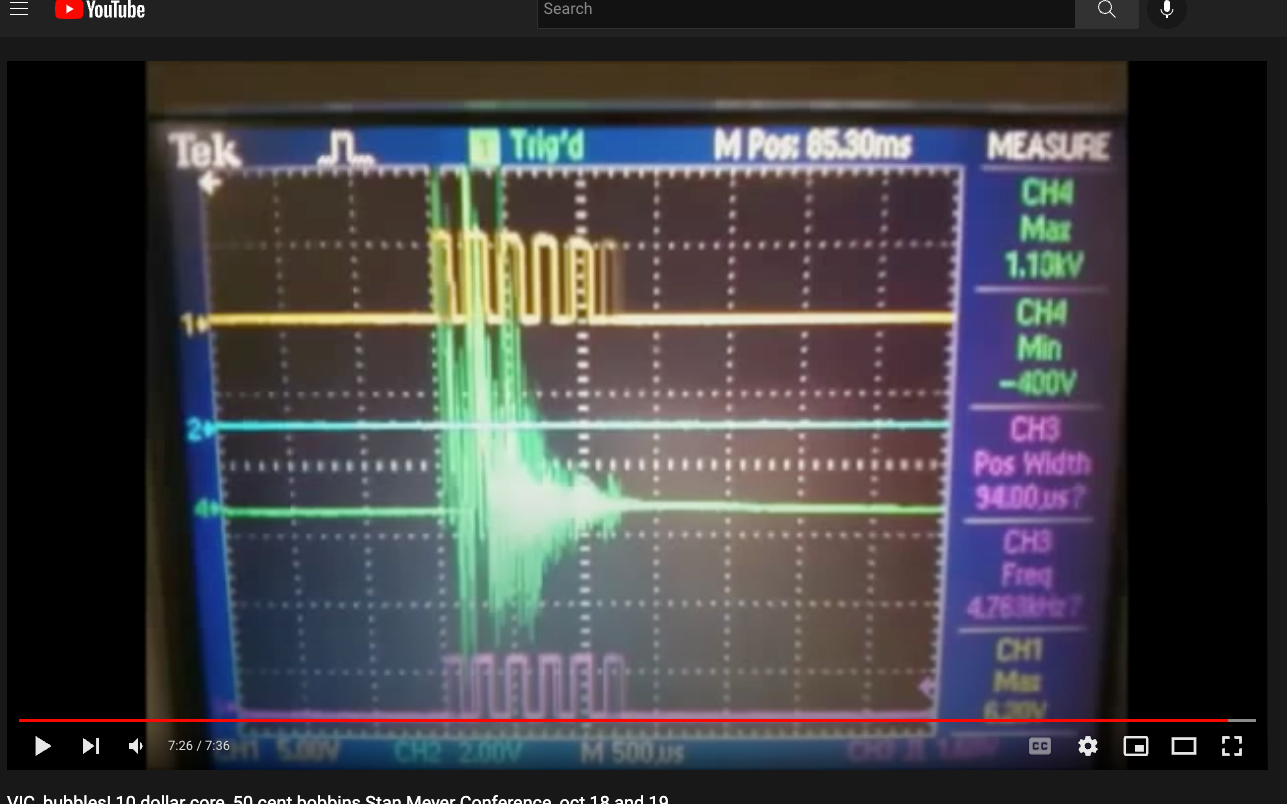

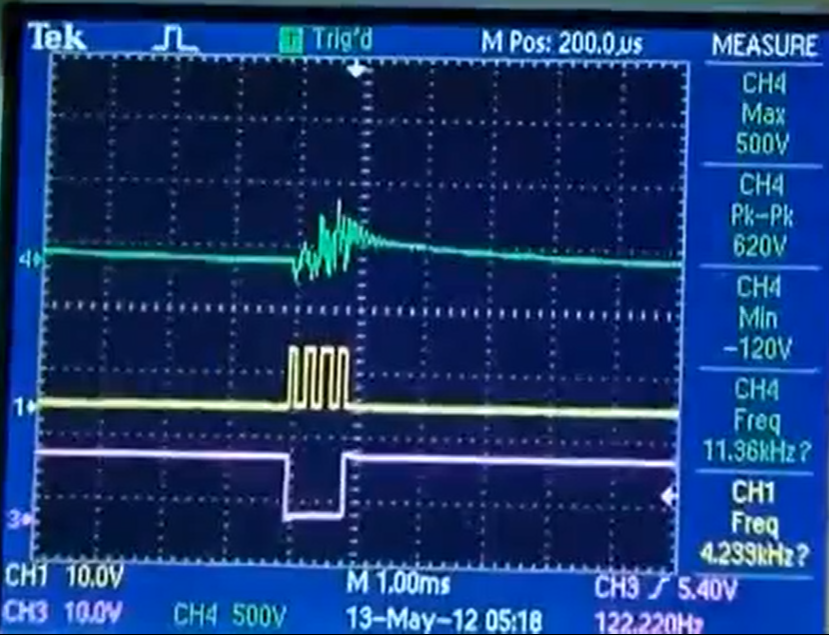

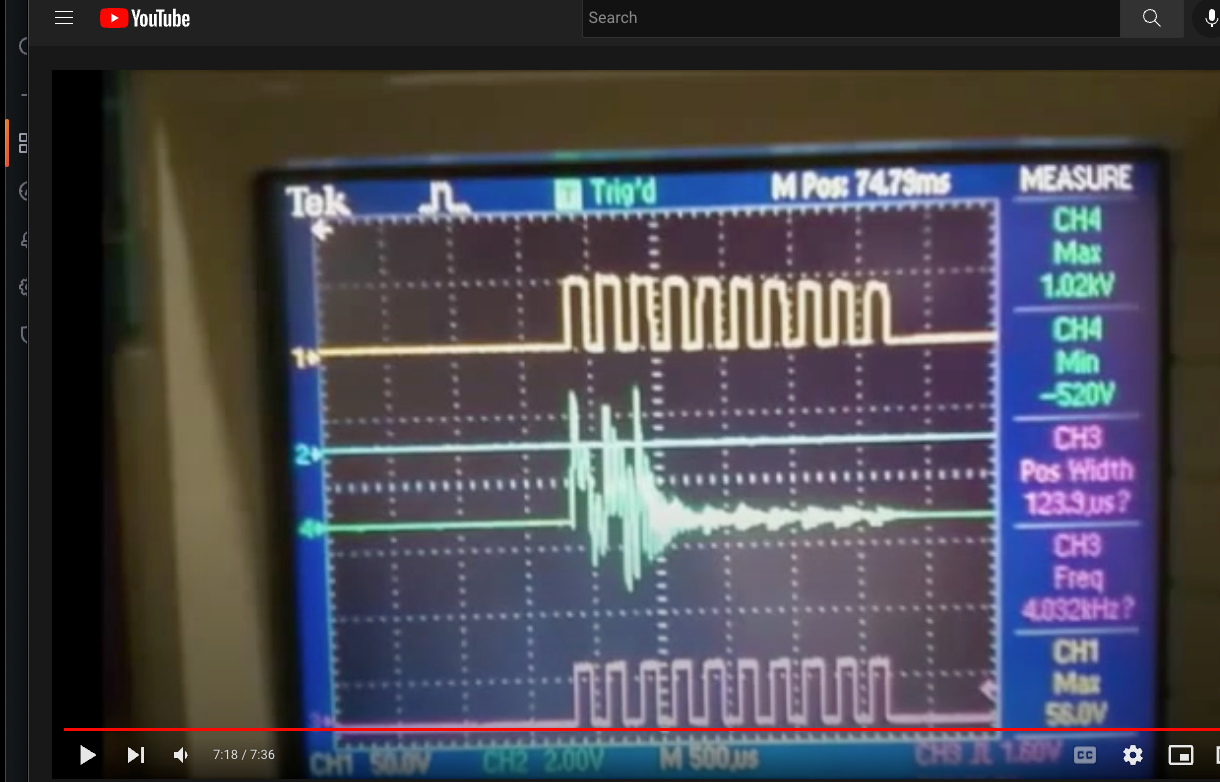

3. The first pulse causes the voltage reference to shift below 0V. The reason for the dip below zero is the secret to Stan's effect.
- Max implied a spectator comment was "on the right track": - "Give it the positive and nature will provide the negative energy to balance it automatically." -4. A really good scope is required.
- What is it about the scope? - The HV isolation is relatively the same as our external isolated probes. - The Techtronics scope may be able to use actual ground as a reference for the 0V line. - Audience: An automotive scope designed for watching spark waveforms can reveal the wave operation. - This confirms a focus on the transient period5. Russ is Nuts -
- Demonstrates the Linear Magneto Effect, discovered by Ed Leekskalin and his [Perpetual Motion Holder](https://physics.stackexchange.com/questions/167356/ed-leedskalnins-perpetual-motion-holder-pmh) - Linear Voltage holds nuts together - Snap it with a backEMF (dead short a battery into a field around it) **Linear Magnetism Statements:** 1. Linear Magnetism travels in a circle, in the same direction, forever 2. No voltage reversal exists 3. In the VIC5 core, linear magnetism travels in one direction only 4. There is no backEMF in the VIC5 toroid **David**: - A threshold of 201mA was found (in a given setup?) where electromagnetism overtakes linear magnetism.Changing the Resonant Frequency of a coil
- **Max:** An automotive ignition coil has a resonant frequency around 50Hz - The car coil is already a well designed resonant transformer - **Max**: That resonant frequency can be changed by introducing a Gate frequency - The gate interrupts the core and allows the pulses to come through - **Max**: Changing the gap in the core - anywhere up to 500kHz - with a step charge coming off of itMagnetic Amplifiers
- Used in legacy computer technology - core materials that can saturate are exploited and used for a binary on/off state. - Pickup coils were wound around the toroid to "check" the state of the bit - The pickup coils do not load the toroid and dampen the linear magnetism - Toroids can be saturated and will retain the linear magnetism indefinitely.Back EMF
- **Max**: Every time you capture the backEMF, you're going to grow a step, and you end up with a ramping wave.The cell will continue to produce hydrogen for up to 1 minute during offtime
The 8XA does resonate - I will eventually prove it
Relationship of the tube sizes.
- **David Puhcta**: The volumes of each tube's metal is relevant - An imbalance exists with the mismatched sizes - The positive outer tube was floated above the negative one - The negative tube has a strong secure mounting base #### Further speculations from known results: The pulse waveform contains an ON time width that is small enough to effect a modulation into the inductor core. The pulse train exists to induce the linear magnetism into the core. The gate period allows it to continue traveling with minimal dampening by the secondary coils and cell load. The Stan effect is not to **avoid** saturation of the VIC5 core, but to **sustain** it! Using only the minimum amount of energy required. The pulse amplitude can reach the voltage breakdown of the cell's gap.
