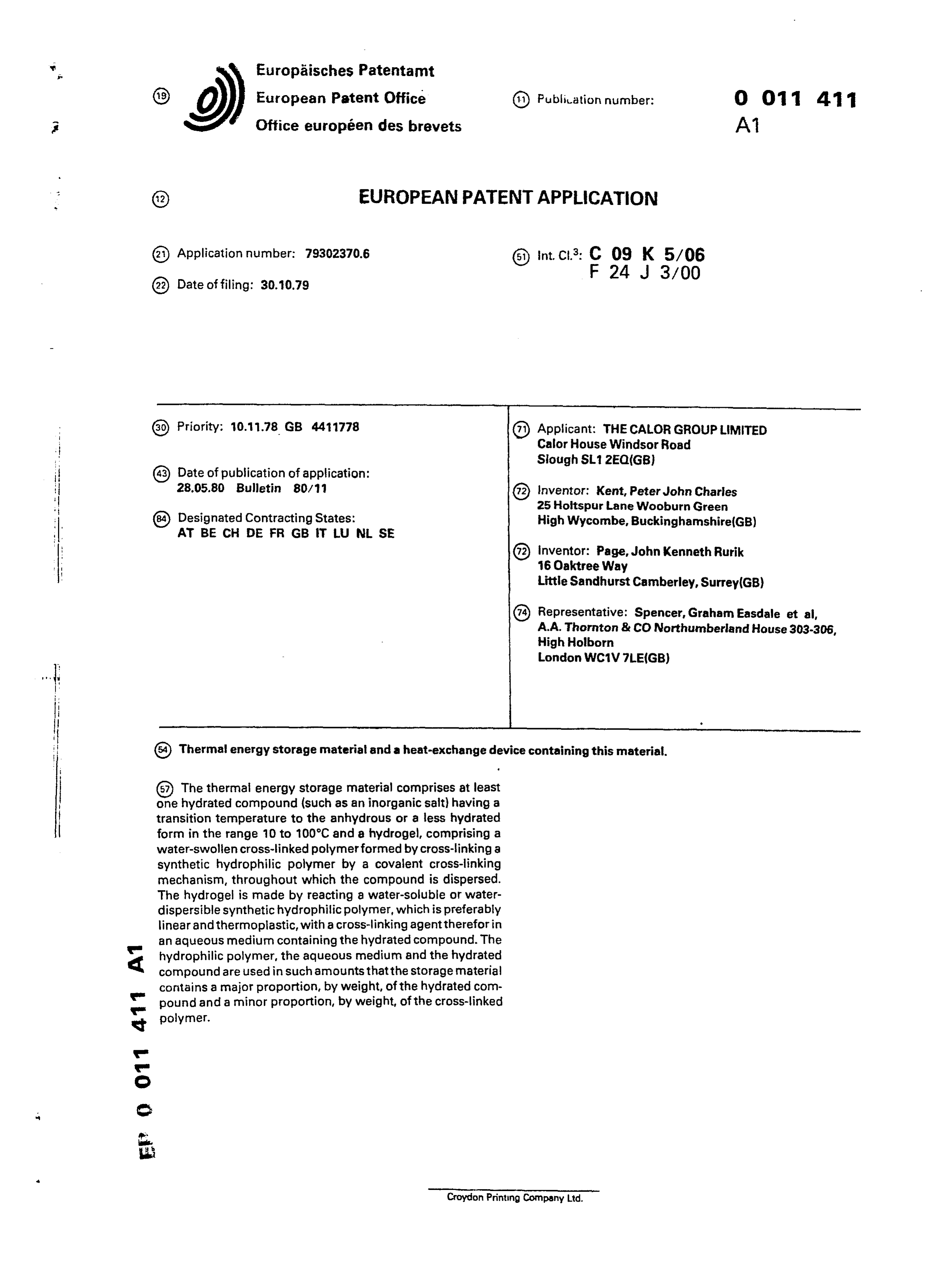

Thermal energy storage material and a heat-exchange device containing this material

Page 1bibliographic recordscan →

Page 2scan →

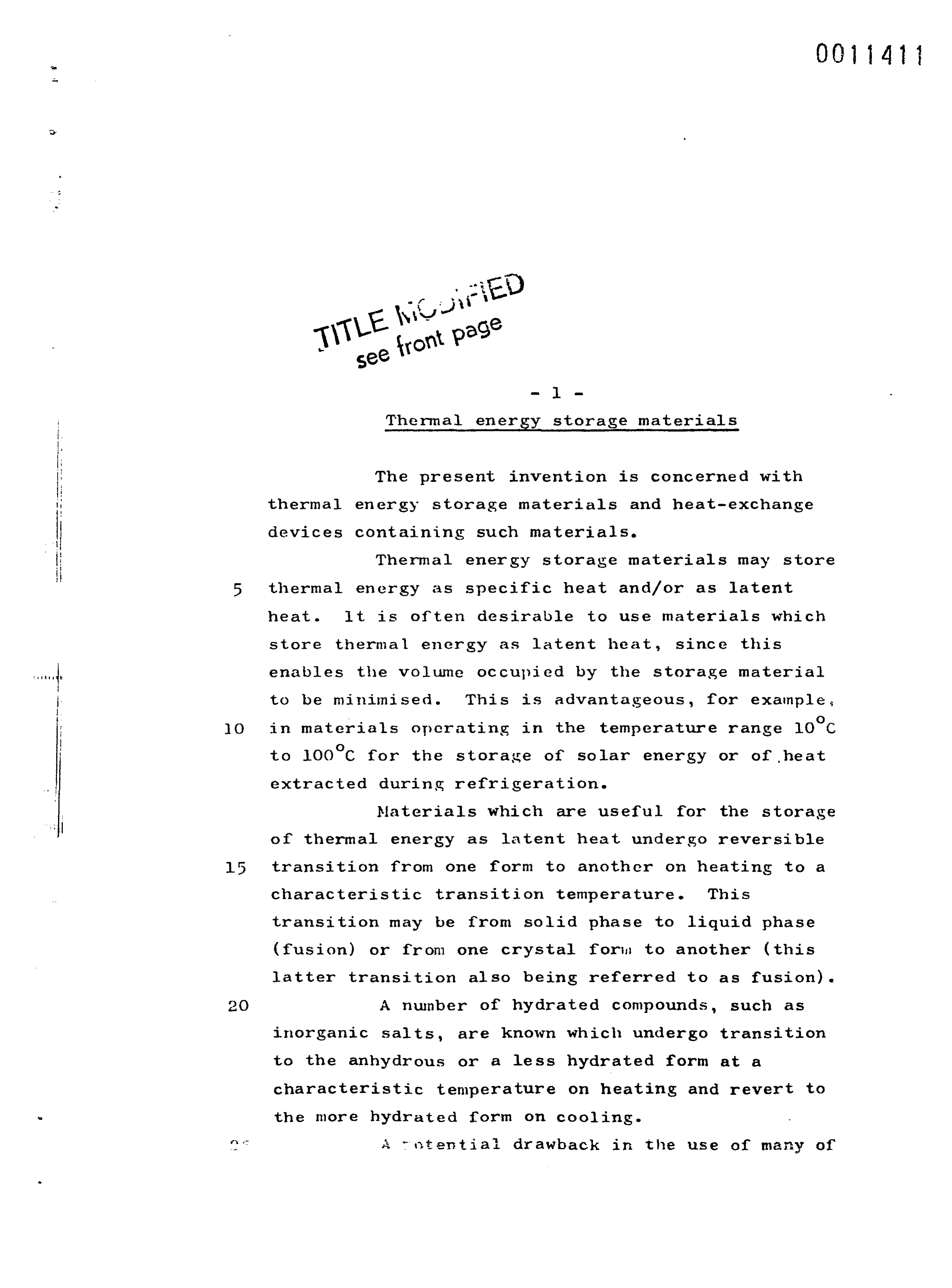

The present invention is concerned with thermal energy storage materials and heat-exchange devices containing such materials.

Thermal energy storage materials may store thermal energy as specific heat and/or as latent heat. lt is often desirable to use materials which store thermal energy as latent heat, since this enables the volume occupied by the storage material to be minimised. This is advantageous, for example, in materials operating in the temperature range 10°C to 100°C for the storage of solar energy or of.heat extracted during refrigeration.

Materials which are useful for the storage of thermal energy as latent heat undergo reversible transition from one form to another on heating to a characteristic transition temperature. This transition may be from solid phase to liquid phase (fusion) or from one crystal form to another (this latter transition also being referred to as fusion). A number of hydrated compounds, such as inorganic salts, are known which undergo transition to the anhydrous or a less hydrated form at a characteristic temperature on heating and revert to the more hydrated form on cooling.

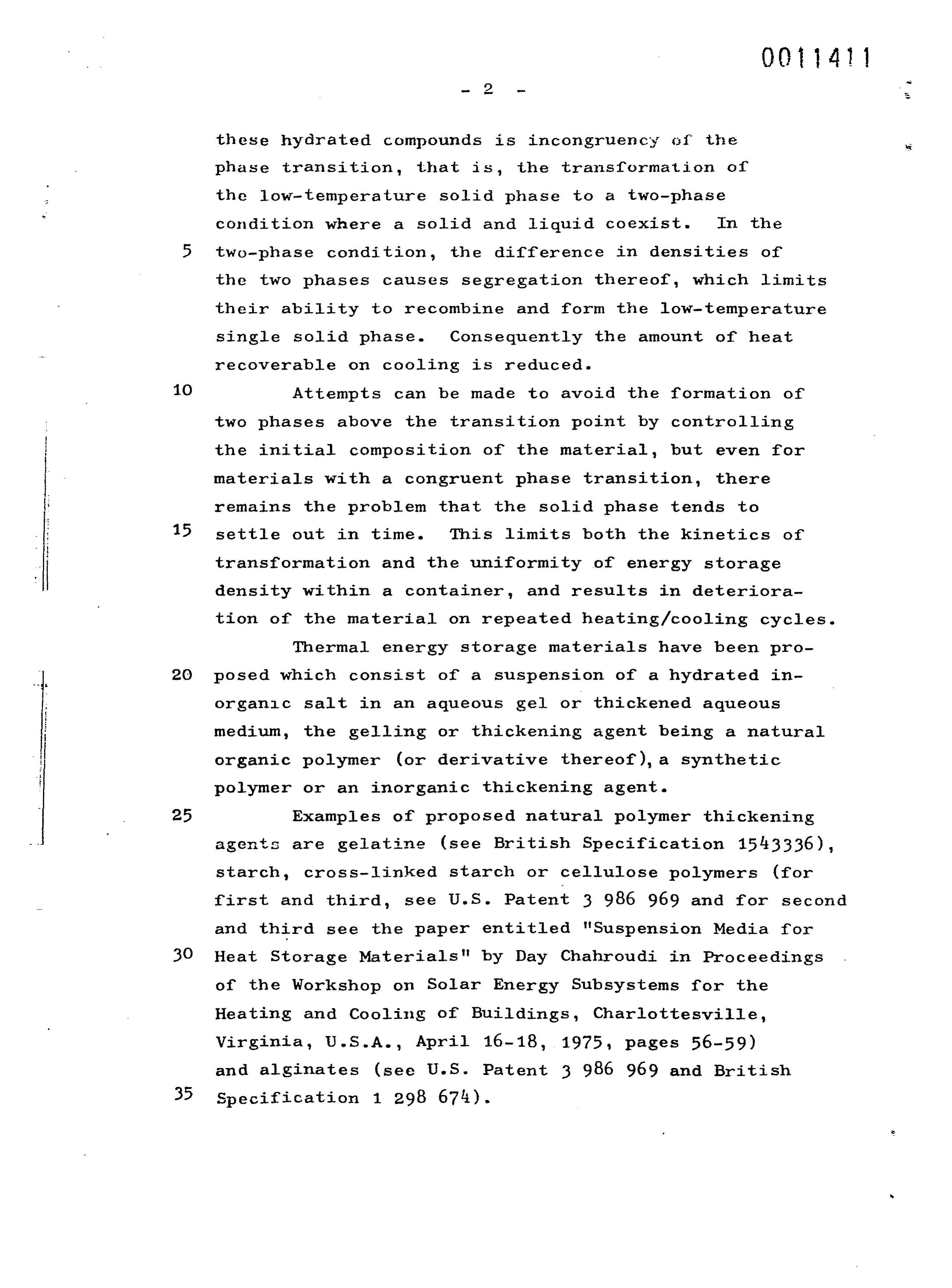

A rotential drawback in the use of many of 3 these hydrated compounds is incongruency of the phase transition, that is, the transformation of the low-temperature solid phase to a two-phase condition where a solid and liquid coexist. In the two-phase condition, the difference in densities of the two phases causes segregation thereof, which limits their ability to recombine and form the low-temperature single solid phase. Consequently the amount of heat recoverable on cooling is reduced.

Attempts can be made to avoid the formation of two phases above the transition point by controlling the initial composition of the material, but even for materials with a congruent phase transition, there remains the problem that the solid phase tends to settle out in time. This limits both the kinetics of transformation and the uniformity of energy storage density within a container, and results in deterioration of the material on repeated heating/cooling cycles. Thermal energy storage materials have been proposed which consist of a suspension of a hydrated inorganic salt in an aqueous gel or thickened aqueous medium, the gelling or thickening agent being a natural organic polymer (or derivative thereof), a synthetic polymer or an inorganic thickening agent.

Examples of proposed natural polymer thickening agents are gelatine (see British Specification 1543336), starch, cross-linked starch or cellulose polymers (for first and third, see U.S. Patent 3 986 969 and for second and third see the paper entitled "Suspension Media for Heat Storage Materials" by Day Chahroudi in Proceedings of the Workshop on Solar Energy Subsystems for the Heating and Cooling of Buildings, Charlottesville,

Virginia, U.S.A., April 16-18, 1975, pages 56-59) and alginates (see U.S. Patent 3 986 969 and British

Page 4scan →

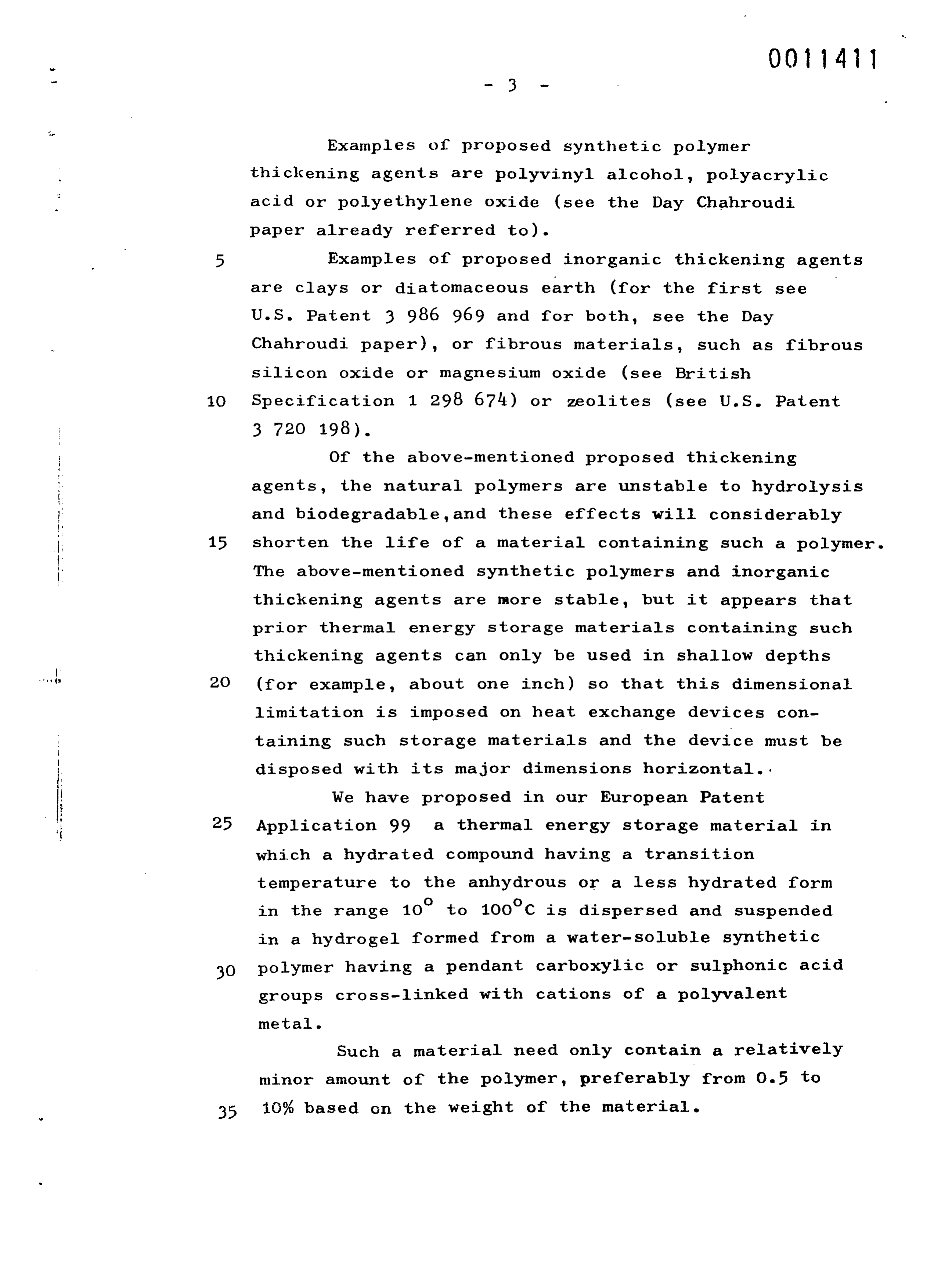

Examples of proposed synthetic polymer thickening agents are polyvinyl alcohol, polyacrylic acid or polyethylene oxide (see the Day Chahroudi paper already referred to).

Examples of proposed inorganic thickening agents are clays or diatomaceous earth (for the first see

Chahroudi paper), or fibrous materials, such as fibrous silicon oxide or magnesium oxide (see British Specification 1 298 674) or zeolites (see U.S. Patent

Of the above-mentioned proposed thickening agents, the natural polymers are unstable to hydrolysis and biodegradable,and these effects will considerably shorten the life of a material containing such a polymer. The above-mentioned synthetic polymers and inorganic thickening agents are more stable, but it appears that prior thermal energy storage materials containing such thickening agents can only be used in shallow depths (for example, about one inch) so that this dimensional limitation is imposed on heat exchange devices containing such storage materials and the device must be disposed with its major dimensions horizontal., We h a v e proposed in our European Patent

Application 99 a thermal energy storage material in which a hydrated compound having a transition temperature to the anhydrous or a less hydrated form in the range 100 to 1000C is dispersed and suspended in a hydrogel formed from a water-soluble synthetic polymer having a pendant carboxylic or sulphonic acid groups cross-linked with cations of a polyvalent metal.

Such a material need only contain a relatively minor amount of the polymer, preferably from 0.5 to

10% b a s e d on the weight of the material.

Page 5scan →

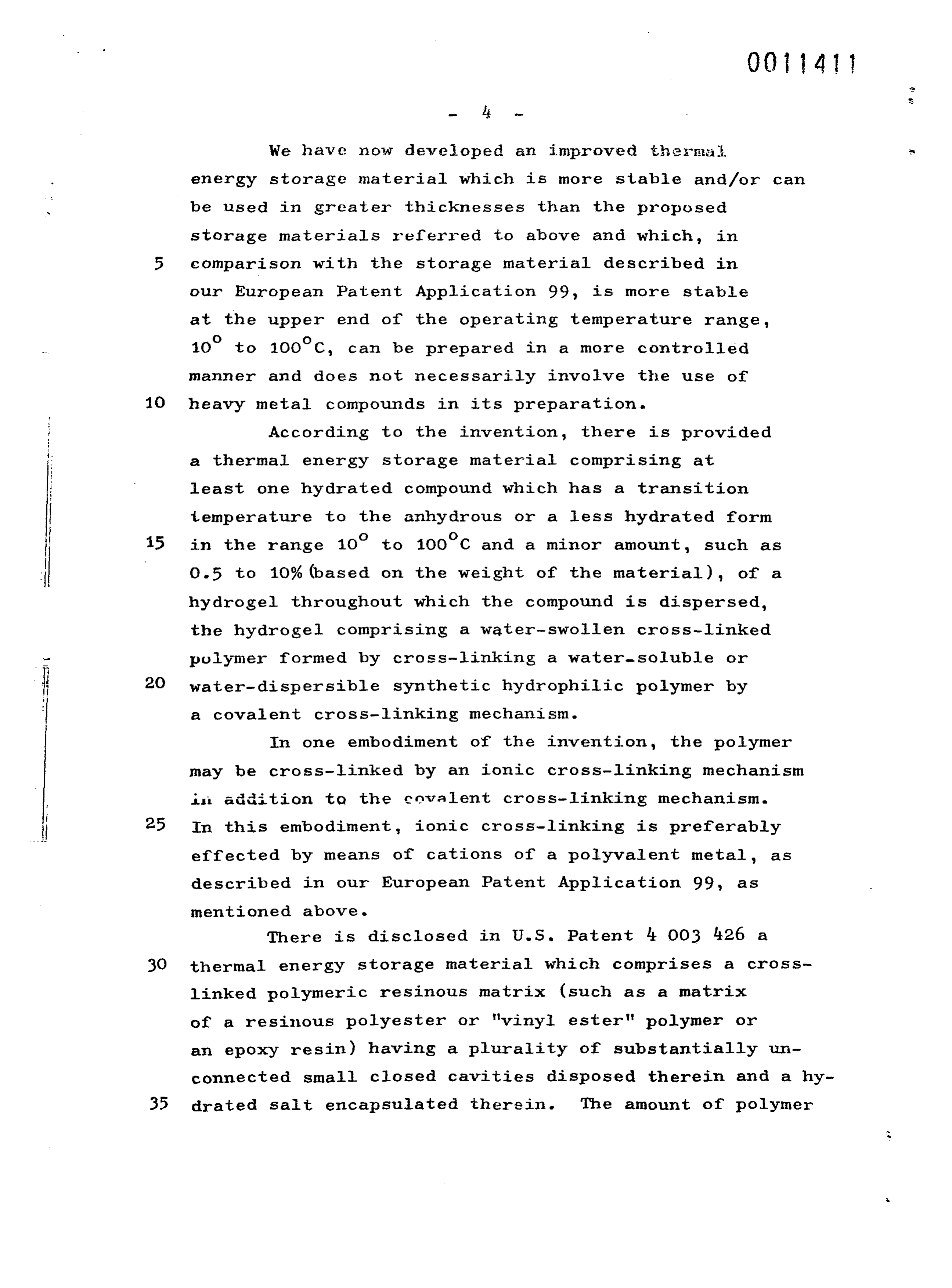

We h a v e now developed an improved thermal energy storage material which is more stable and/or can be used in greater thicknesses than the proposed storage materials referred to above and which, in comparison with the storage material described in our European Patent Application 99, is more stable at the upper end of the operating temperature range, 100 to 1000C, can be prepared in a more controlled manner and does not necessarily involve the use of heavy metal compounds in its preparation.

According to the invention, there is provided a thermal energy storage material comprising at least one hydrated compound which has a transition temperature to the anhydrous or a less hydrated form in the range 100 to 100°C and a minor amount, such as 0.5 to 10%(based on the weight of the material), of a hydrogel throughout which the compound is dispersed, the hydrogel comprising a water-swollen cross-linked polymer formed by cross-linking a water-soluble or water-dispersible synthetic hydrophilic polymer by a covalent cross-linking mechanism.

In one embodiment of the invention, the polymer may be cross-linked by an ionic cross-linking mechanism in addition to the covalent cross-linking mechanism. In this embodiment, ionic cross-linking is preferably effected by means of cations of a polyvalent metal, as described in our European Patent Application 99, as mentioned above.

There is disclosed in U.S. Patent 4 003 426 a thermal energy storage material which comprises a crosslinked polymeric resinous matrix (such as a matrix of a resinous polyester or "vinyl ester" polymer or an epoxy resin) having a plurality of substantially unconnected small closed cavities disposed therein and a hydrated salt encapsulated therein. The amount of polymer 6 included in such materials is disadvantageously high (that. is, at least 25% by weight, usually at least 35% hy weight). The presence of such a large amount of resinous polymer in the material means that the material has a disadvantageously low heat capacity per unit volume.

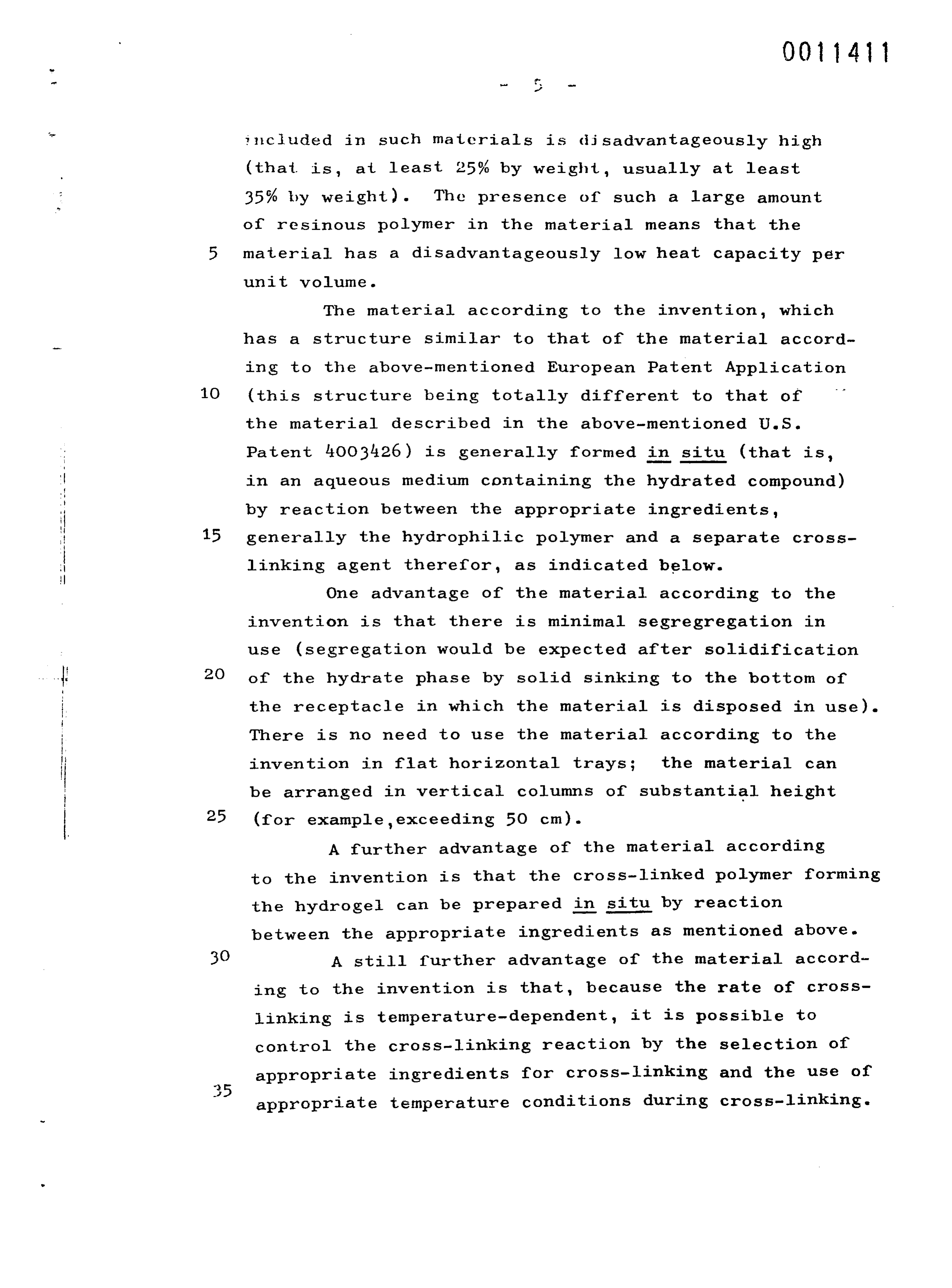

The material according to the invention, which has a structure similar to that of the material according to the above-mentioned European Patent Application (this structure being totally different to that of the material described in the above-mentioned U.S. Patent 4003426) is generally formed in situ (that is, in an aqueous medium containing the hydrated compound) by reaction between the appropriate ingredients, generally the hydrophilic polymer and a separate crosslinking agent therefor, as indicated below. One advantage of the material according to the invention is that there is minimal segregregation in use (segregation would be expected after solidification of the hydrate phase by solid sinking to the bottom of the receptacle in which the material is disposed in use). There is no need to use the material according to the invention in flat horizontal trays; the material can be arranged in vertical columns of substantial height (for example,exceeding 50 cm).

A further advantage of the material according to the invention is that the cross-linked polymer forming the hydrogel can be prepared in situ by reaction between the appropriate ingredients as mentioned above.

A still further advantage of the material according to the invention is that, because the rate of crosslinking is temperature-dependent, it is possible to control the cross-linking reaction by the selection of appropriate ingredients for cross-linking and the use of appropriate temperature conditions during cross-linking.

Page 7scan →

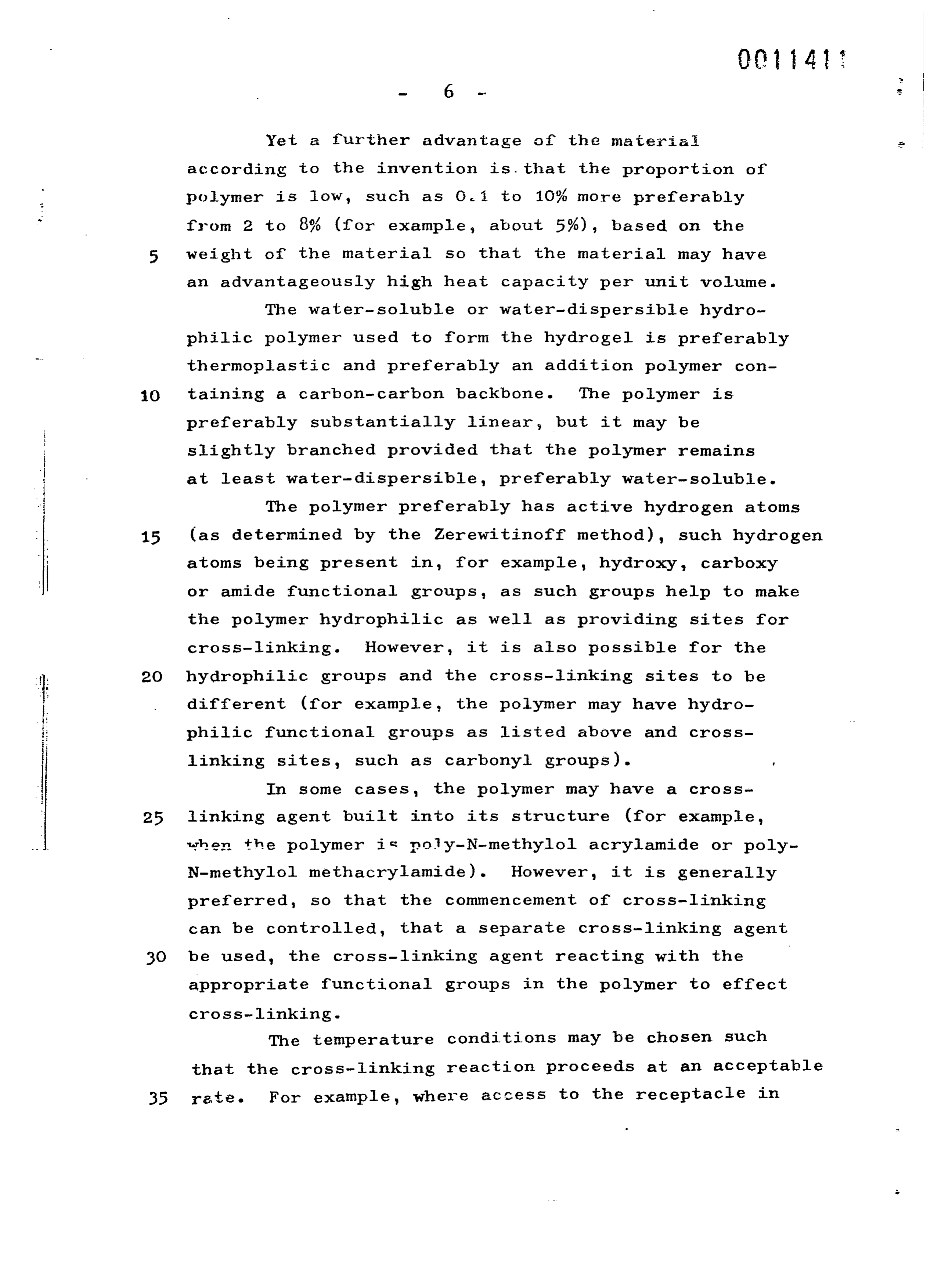

Yet a further advantage of the material according to the invention is.that the proportion of polymer is low, such as 0,1 to 10% m o r e preferably from 2 to 8% (for example, about 5%), based on the weight of the material so that the material may have an advantageously high heat capacity per unit volume. The water-soluble or water-dispersible hydrophilic polymer used to form the hydrogel is preferably thermoplastic and preferably an addition polymer containing a carbon-carbon backbone. The polymer is preferably substantially linear, but it may be slightly branched provided that the polymer remains at least water-dispersible, preferably water-soluble. The polymer preferably has active hydrogen atoms (as determined by the Zerewitinoff method), such hydrogen atoms being present in, for example, hydroxy, carboxy or amide functional groups, as such groups help to make the polymer hydrophilic as well as providing sites for cross-linking. However, it is also possible for the hydrophilic groups and the cross-linking sites to be different (for example, the polymer may have hydrophilic functional groups as listed above and crosslinking sites, such as carbonyl groups).

In some cases, the polymer may have a crosslinking agent built into its structure (for example, when the polymer iQ poly-N-methylol acrylamide or poly- N-methylol methacrylamide). However, it is generally preferred, so that the commencement of cross-linking can be controlled, that a separate cross-linking agent be used, the cross-linking agent reacting with the appropriate functional groups in the polymer to effect

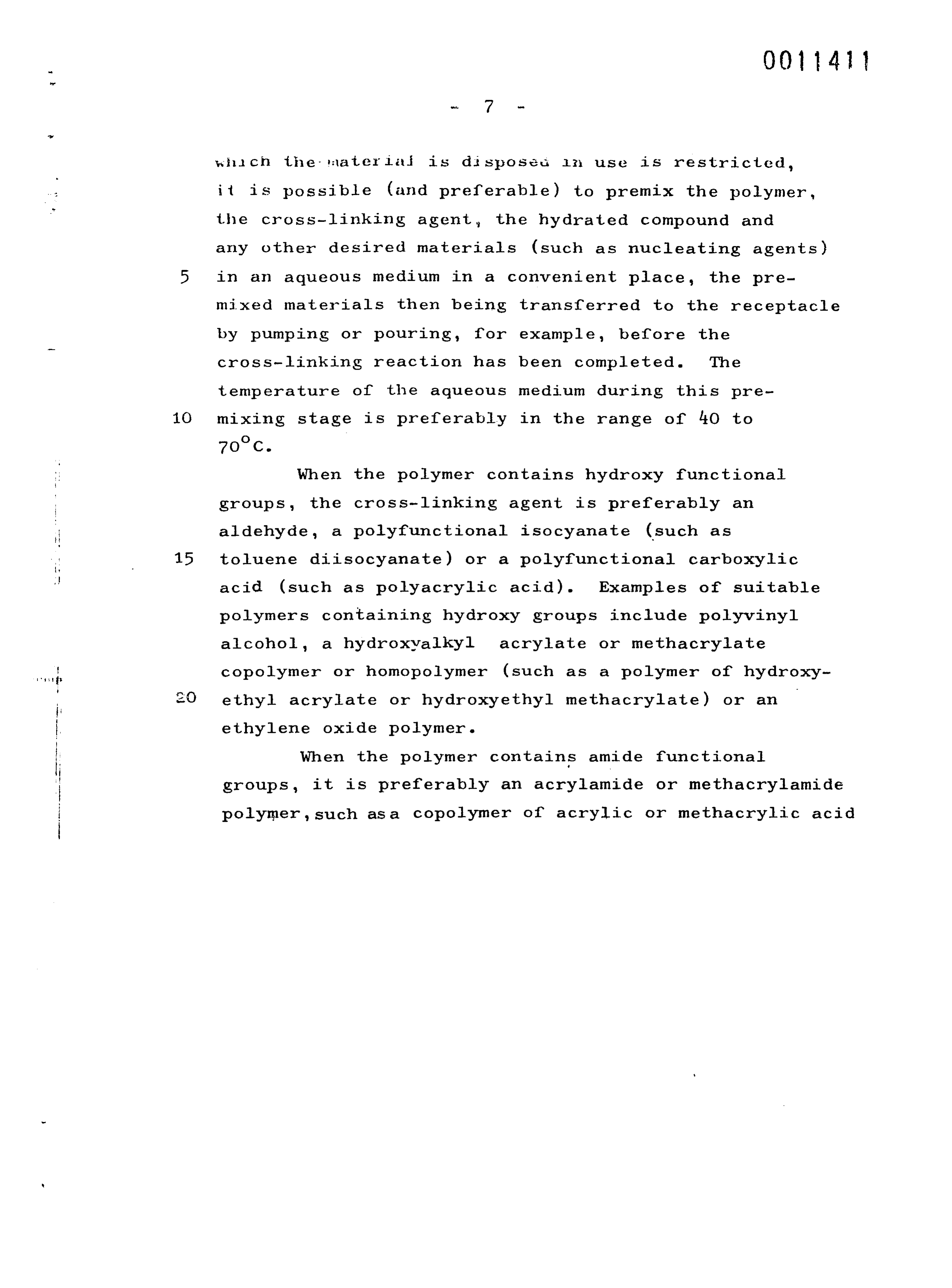

The temperature conditions may be chosen such that the cross-linking reaction proceeds at an acceptable rate. For example, where access to the receptacle in 8 which the material is disposed in use is restricted, it is possible (and preferable) to premix the polymer, the cross-linking agent, the hydrated compound and any other desired materials (such as nucleating agents) in an aqueous medium in a convenient place, the premixed materials then being transferred to the receptacle by pumping or pouring, for example, before the cross-linking reaction has been completed. The temperature of the aqueous medium during this premixing stage is preferably in the range of 40 to

When the polymer contains hydroxy functional groups, the cross-linking agent is preferably an aldehyde, a polyfunctional isocyanate (such as toluene diisocyanate) or a polyfunctional carboxylic acid (such as polyacrylic acid). Examples of suitable polymers containing hydroxy groups include polyvinyl alcohol, a hydroxyalkyl acrylate or methacrylate copolymer or homopolymer (such as a polymer of hydroxyethyl acrylate or hydroxyethyl methacrylate) or an

When the polymer contains amide functional groups, it is preferably an acrylamide or methacrylamide polymer,such asa copolymer of acrylic or methacrylic acid 9 with acrylamide or methacrylamide, partially hydrolysed polyacrylamide or polymethacrylamide, or an alkali metal or ammonium salt thereof. An example of a suitable cross-linking agent for such a polymer is an aldehyde.

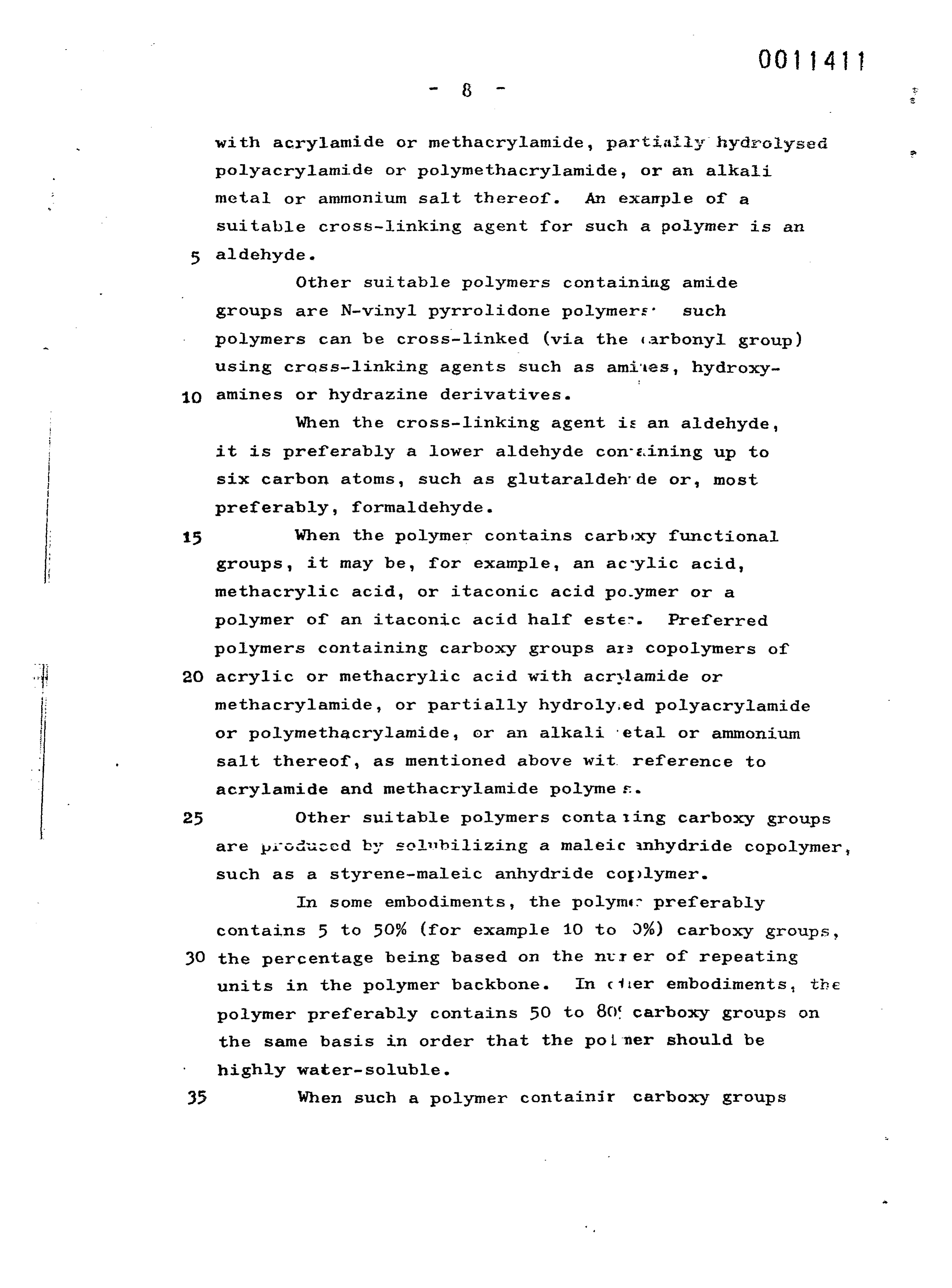

Other suitable polymers containing amide groups are N-vinyl pyrrolidone polymers such polymers can be cross-linked (via the carbonyl group) using cross-linking agents such as amines, hydroxyamines or hydrazine derivatives.

When the cross-linking agent is an aldehyde, it is preferably a lower aldehyde con aining up to six carbon atoms, such as glutaraldeh de or, most preferably, formaldehyde.

When the polymer contains carboxy functional groups, it may be, for example, an accylic acid, methacrylic acid, or itaconic acid po.ymer or a polymer of an itaconic acid half ester. Preferred polymers containing carboxy groups are copolymers of acrylic or methacrylic acid with acrylamide or methacrylamide, or partially hydrolysed polyacrylamide or polymethacrylamide, or an alkali etal or ammonium salt thereof, as mentioned above wit reference to acrylamide and methacrylamide polymer.

Other suitable polymers contaiing carboxy groups are produced by solubilizing a maleic anhydride copolymer, such as a styrene-maleic anhydride coplymer.

In some embodiments, the polyme preferably contains 5 to 50% (for example 10 to 0%) carboxy groups, the percentage being based on the nurer of repeating units in the polymer backbone. In oder embodiments, the polymer preferably contains 50 to 809 c a r b o x y groups on the same basis in order that the polymer should be highly water-soluble.

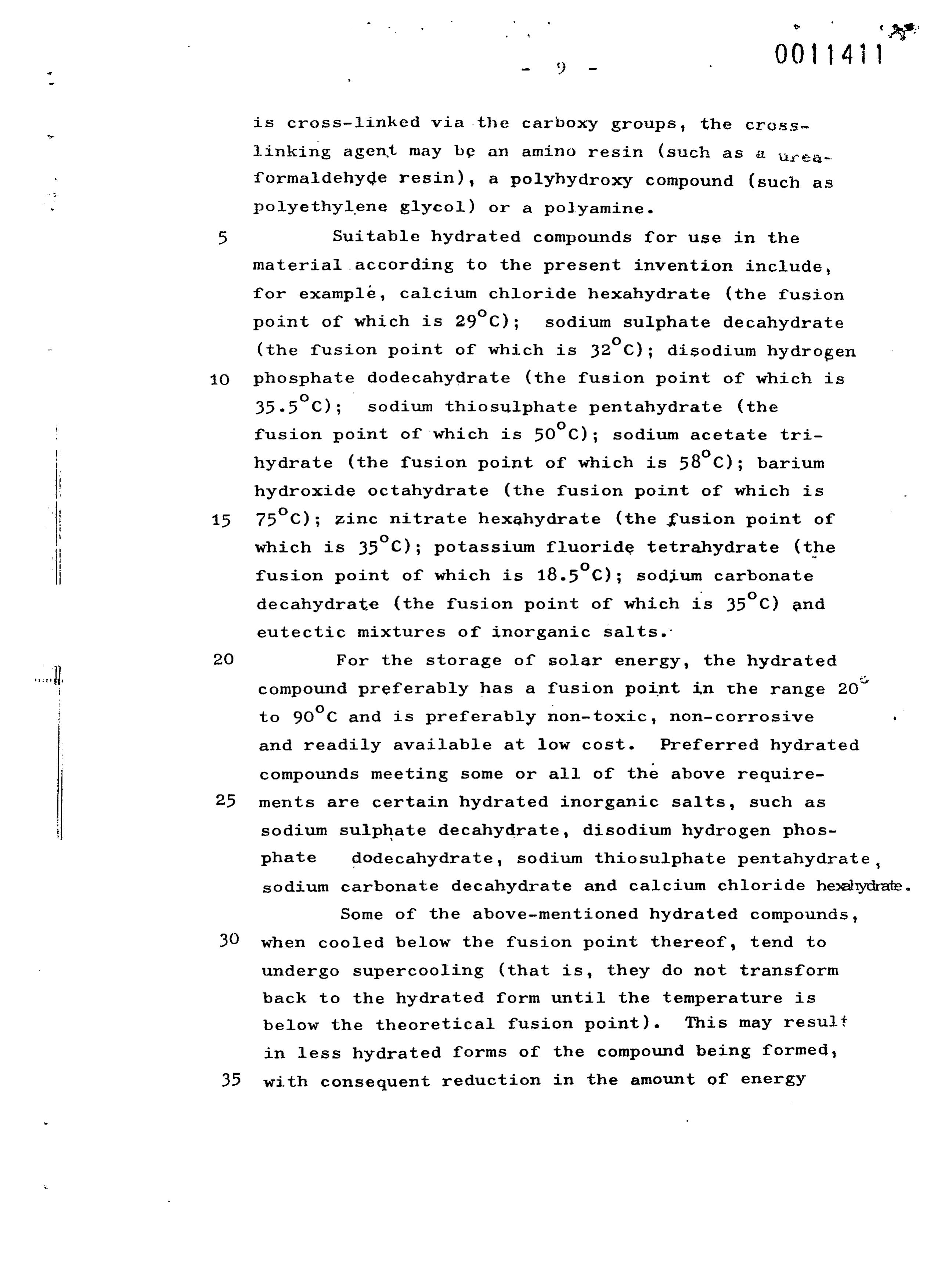

When such a polymer containir carboxy groups 10 is cross-linked via the carboxy groups, the crosslinking agent may be an amino resin (such as a ureaformaldehyde resin), a polyhydroxy compound (such a s polyethylene glycol) or a polyamine.

Suitable hydrated compounds for use in the material according to the present invention include, for example, calcium chloride hexahydrate (the fusion point of which is 29°C); sodium sulphate decahydrate (the fusion point of which is 32°C); disodium hydrogen phosphate dodecahydrate (the fusion point of which is 35.5°C); sodium thiosulphate pentahydrate (the fusion point of which is 50°C); sodium acetate trihydrate (the fusion point of which is 58°C); barium hydroxide octahydrate (the fusion point of which is 75°C); zinc nitrate hexahydrate (the fusion point of which is 35°C); potassium fluoride tetrahydrate (the fusion point of which is 18.5°C); sodium carbonate decahydrate (the fusion point of which is 35°C) and eutectic mixtures of inorganic salts.

For the storage of solar energy, the hydrated compound preferably has a fusion point in the range 20° to 90 C and is preferably non-toxic, non-corrosive and readily available at low cost. Preferred hydrated compounds meeting some or all of the above requirements are certain hydrated inorganic salts, such as sodium sulphate decahydrate, disodium hydrogen phosphate dodecahydrate, sodium thiosulphate pentahydrate, sodium carbonate decahydrate and calcium chloride hexahydrate. Some of the above-mentioned hydrated compounds, when cooled below the fusion point thereof, tend to undergo supercooling (that is, they do not transform back to the hydrated form until the temperature is below the theoretical fusion point). This may result in less hydrated forms of the compound being formed, with consequent reduction in the amount of energy 11 released. In order to avoid supercooling., the material may be nucleated, for example, by a heat-transfer method as disclosed in U.S. Patent 2677243, by careful control of the proportions of the ingredients of the composition, or by addition of an insoluble nucleating agent. Sometimes the polymer forming the hydrogel may act as the nucleating agent. A preferred nucleating agent for sodium sulphate decahydrate is borax, as proposed in U.S. Patent 2677664. Other suitable nucleating agents are disclosed in British Specifications 1500245, 1543336 and 2001096 and German Offenlegungs-

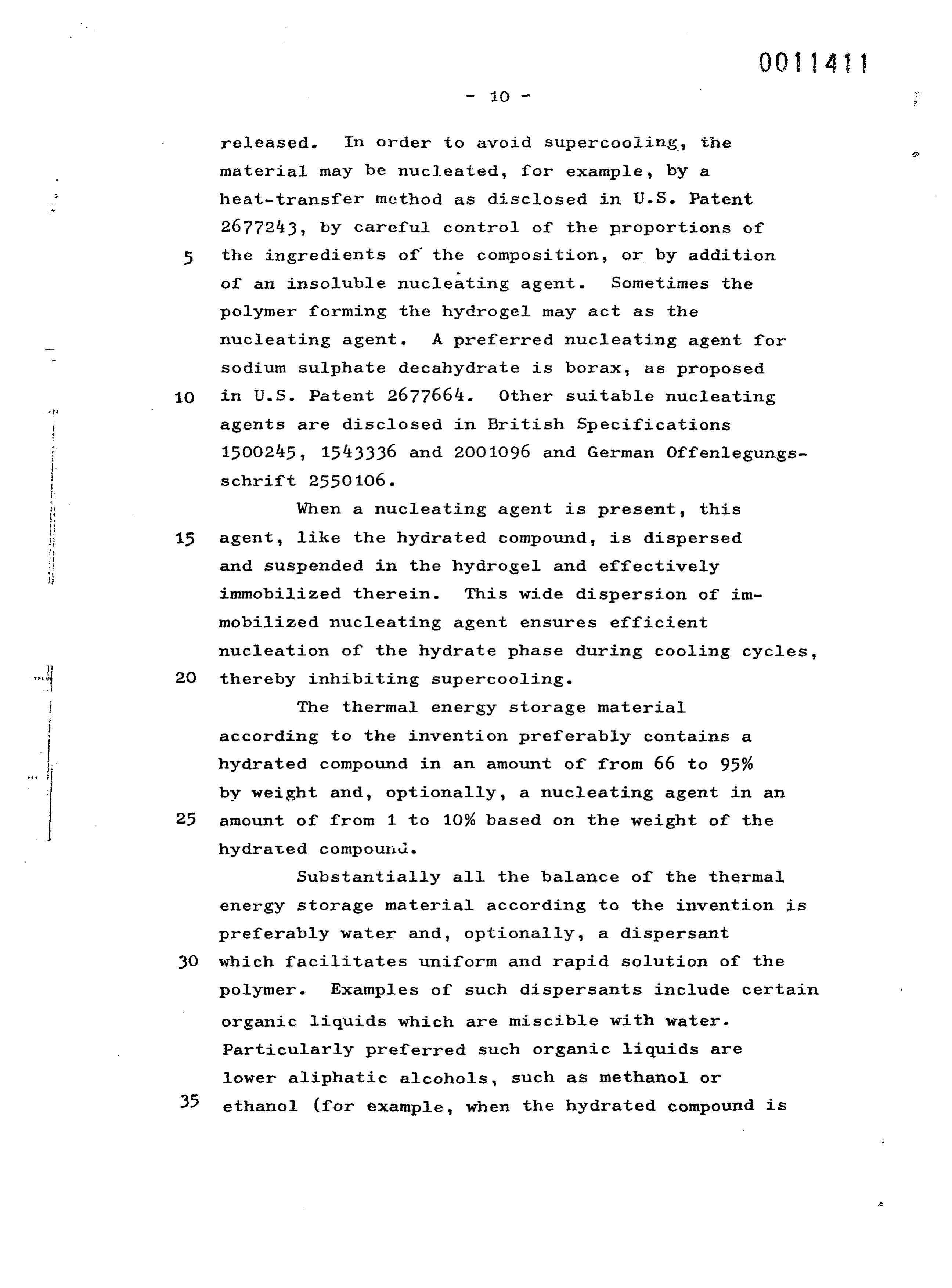

When a nucleating agent is present, this agent, like the hydrated compound, is dispersed and suspended in the hydrogel and effectively immobilized therein. This wide dispersion of immobilized nucleating agent ensures efficient nucleation of the hydrate phase during cooling cycles, thereby inhibiting supercooling.

The thermal energy storage material according to the invention preferably contains a hydrated compound in an amount of from 66 to 95% by weight and, optionally, a nucleating agent in an amount of from 1 to 10% b a s e d on the weight of the hydrated compound.

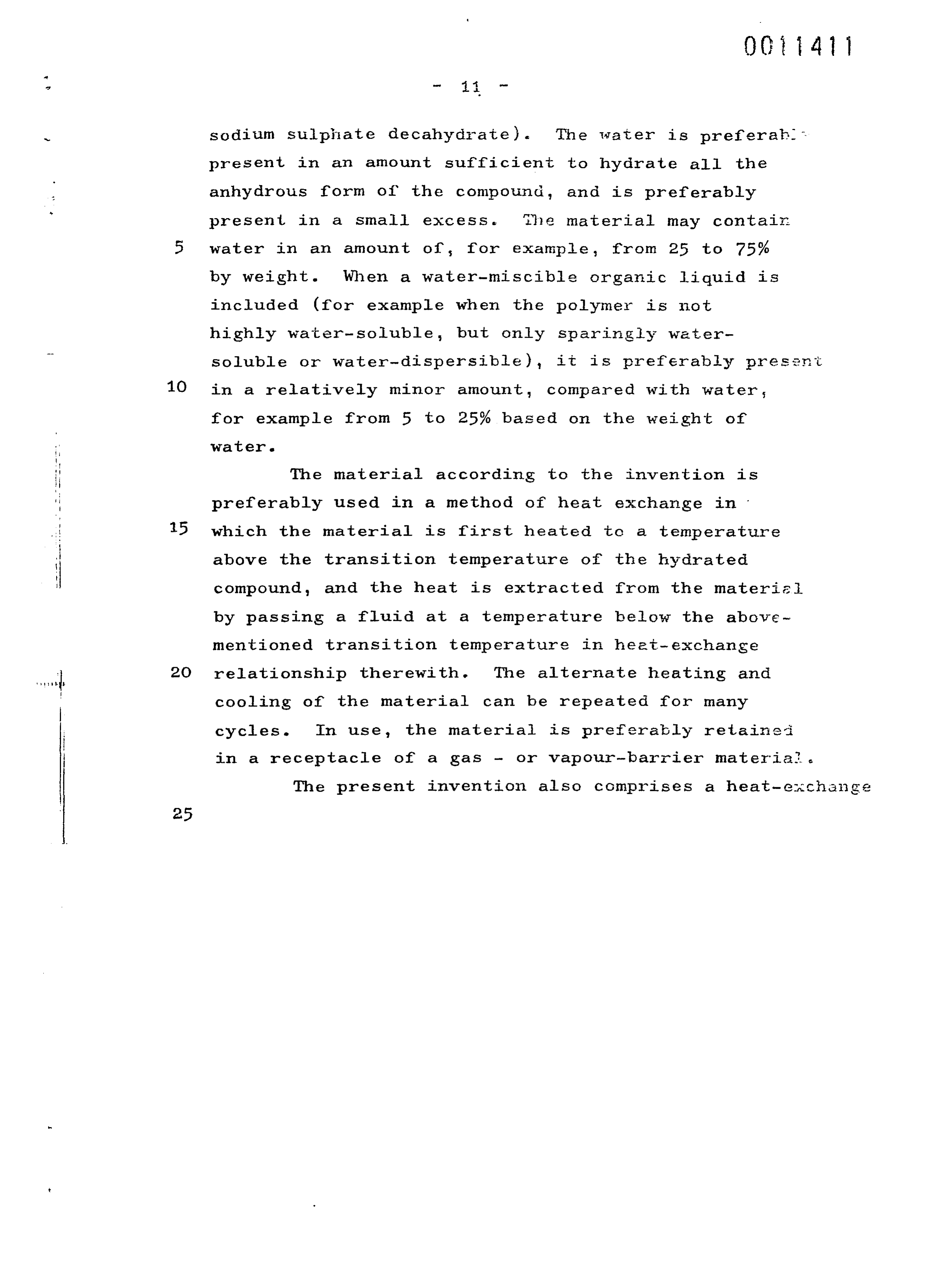

Substantially all the balance of the thermal energy storage material according to the invention is preferably water and, optionally, a dispersant which facilitates uniform and rapid solution of the polymer. Examples of such dispersants include certain organic liquids which are miscible with water. Particularly preferred such organic liquids are lower aliphatic alcohols, such as methanol or ethanol (for example, when the hydrated compound is 12 sodium sulphate decahydrate). The water is preferable present in an amount sufficient to hydrate all the anhydrous form of the compound, and is preferably present in a small excess. The material may contain water in an amount of, for example, from 25 to 75% by weight. When a water-miscible organic liquid is included (for example when the polymer is not highly water-soluble, but only sparingly watersoluble or water-dispersible), it is preferably present in a relatively minor amount, compared with water, for example from 5 to 25% based on the weight of water.

The material according to the invention is preferably used in a method of heat exchange i n which the material is first heated to a temperature above the transition temperature of the hydrated compound, and the heat is extracted from the material by passing a fluid at a temperature below the abovementioned transition temperature in heat-exchange relationship therewith. The alternate heating and cooling of the material can be repeated for many cycles. In use, the material is preferably retained in a receptacle of a gas - or vapour-barrier material. The present invention also comprises a heat-exchange 13 device, which comprises a receptacle of a gas - or vapour-barrier material containing the thermal energy storage material according to the invention and means for supplying a cooling fluid in heat-exchange relationship with the thermal energy storage material.

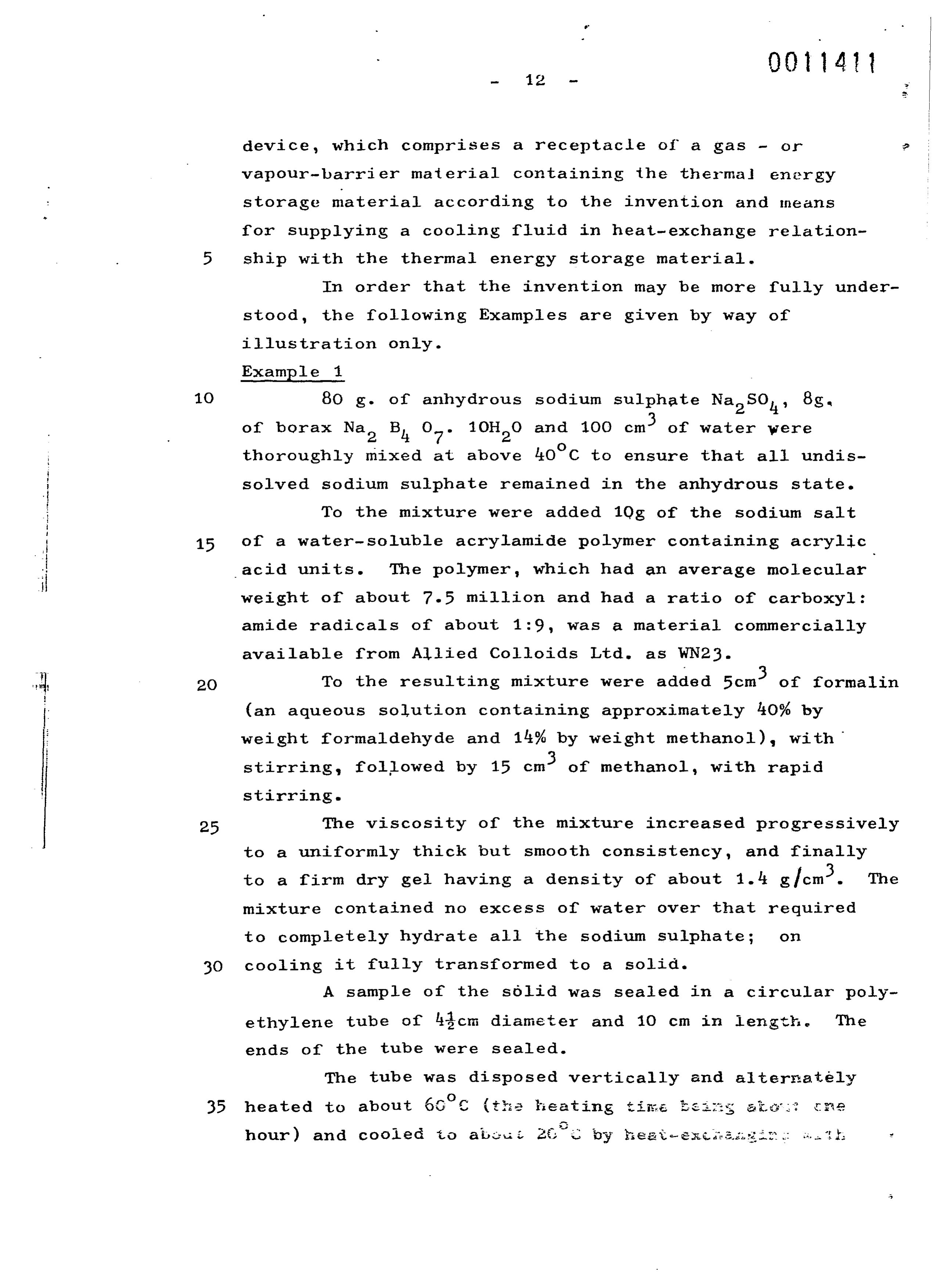

In order that the invention may be more fully understood, the following Examples are given by way of

80 g. of anhydrous sodium sulphate Na2SO4, 8g, of borax Na2 B4 07. 10H20 and 100 cm3 of w a t e r w e r e thoroughly m i x e d at above 40°C to ensure that all undissolved sodium sulphate remained in the anhydrous state. To the mixture were added 1Qg of the sodium salt of a water-soluble acrylamide polymer containing acrylic acid units. The polymer, which had an average molecular weight of about 7.5 million and had a ratio of carboxyl: amide radicals of about 1:9, was a material commercially available from Allied Colloids Ltd. as WN23. To the resulting mixture were added 5cm3 of formalin (an aqueous solution containing approximately 40% b y weight formaldehyde and 14% by w e i g h t m e t h a n o l ) , w i t h stirring, followed by 15 cm 3 of m e t h a n o l , with r a p i d stirring.

The viscosity of the mixture increased progressively to a uniformly thick but smooth consistency, and finally to a firm dry gel having a density of about 1.4 g/cm3. The mixture contained no excess of water over that required to completely hydrate all the sodium sulphate; on cooling it fully transformed to a solid.

A sample of the solid was sealed in a circular polyethylene tube of 41 2cm d i a m e t e r and 10 cm in length. The

The tube was disposed vertically and alternately heated to about 60°C (the heating time being atoms one hour) and cooled to about 20°C by heat-enchanging sith 14 waier circulating outside the tube ( t h ec o o l i n g t i m e being three to four hours). Reproducible thermal arrover. with no detectable segregation of the constituents, wers obtained for more than 500 cycles of heating and ccooling. Another sample of the solid was held at 45°C for a prolonged period; no segregation was detectable after over 500 hours at this temperature.

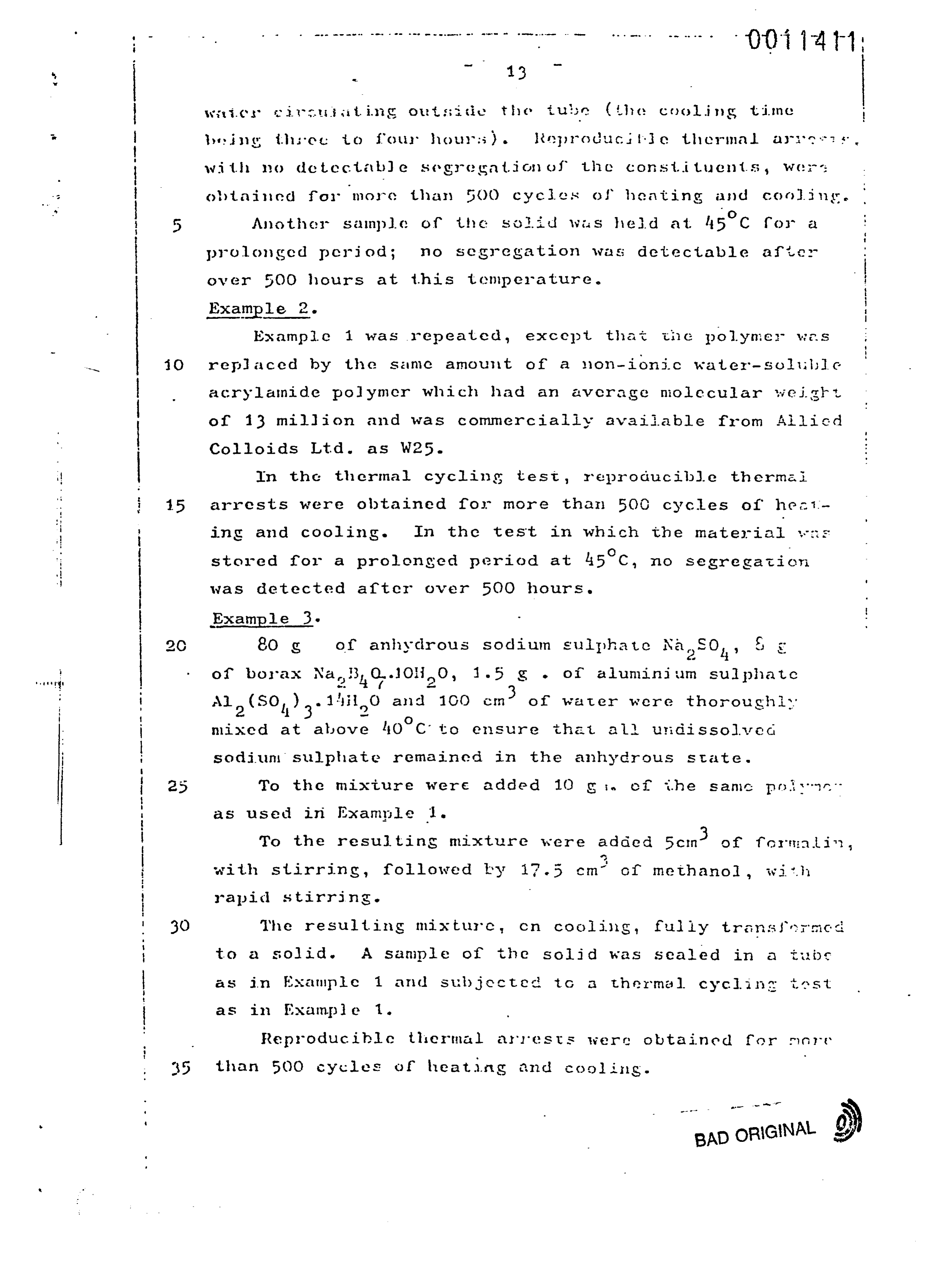

Example 1 was repeated, except that the polymer was replaced by the same amount of a non-ionic water-soluble acrylamide polymer which had an average molecular weight of 13 million and was commercially available from Allied

In the thermal cycling test, reproducible thermal arrests were obtained for more than 500 cycles of heating and cooling. In the test in which the material was stored for a prolonged period at 45°C, no segregation was detected after over 500 hours.

Example 3

80 g of anhydrous sodium sulphate Na2SO4, 8 g of borax

Na2B4O7.10H2O, 1.5 g . of aluminium sulphate

Al2(SO4)3.14H2O and 100 water were thoroughly mixed at above 40°C to ensure that all undissolved sodium sulphate remained in the anhydrous state. To the mixture were added 10 g . of the same polyme-

To the resulting mixture were added 5cm3 of formalin, with stirring, followed by 17.5 cm3 of methanol, with rapid stirring.

The resulting mixture, on cooling, fully transformed to a solid. A sample of the solid was scaled in a tube as in Example 1 and subjected to a thermal cycling test

Reproducible thermal arrests were obtained for more than 500 cycles of heating and cooling.

Page 15scan →

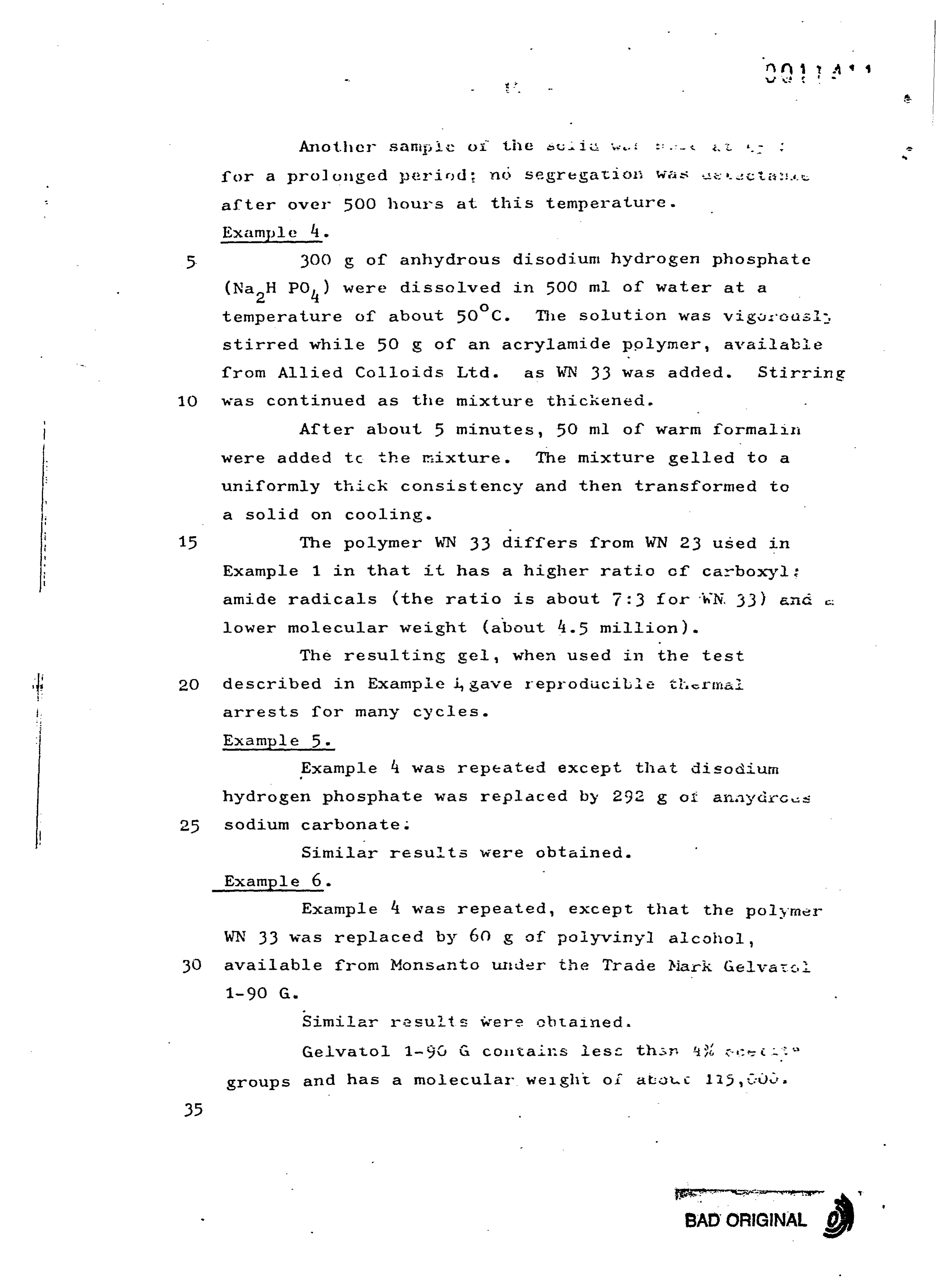

Another sample of the solid was sert at by : for a proolonged period; no segregation was detectante after over 500 hours at this temperature.

300 g of anhydrous disodium hydrogen phosphate

(Na2H P04) were dissolved in 500 ml of water at a temperature of about 50°C. The solution was vigorously stirred while 50 g of an acrylamide polymer, available from Allied Colloids Ltd. as WN 33 was added. Stirring was continued as the mixture thickened.

After about 5 minutes, 50 ml of warm formalin were added tc the mixture. The mixture gelled to a uniformly thick consistency and then transformed to

The polymer WN 33 differs from WN 23 used in Example 1 in that it has a higher ratio of carboxyl; amide radicals (the ratio is about 7:3 for WN 33) and a lower molecular weight (about 4.5 million). The resulting gel, when used in the test described in Example 1, gave reproducible thermal

Example 4 was repeated except that disodium hydrogen phosphate was replaced by 292 g of annydrcas sodium carbonate.

Similar results were obtained.

Example 4 was repeated, except that the polymer WN 33 was replaced by 60 g of polyvinyl alcohol, available from Monsanto under the Trade Mark Gelvatol

Similar results were obtained.

Gelvatol 1-90 G contains lesc than 4% e c e t i n g groups and has a molecular weight of about 115,900.

Page 16scan →

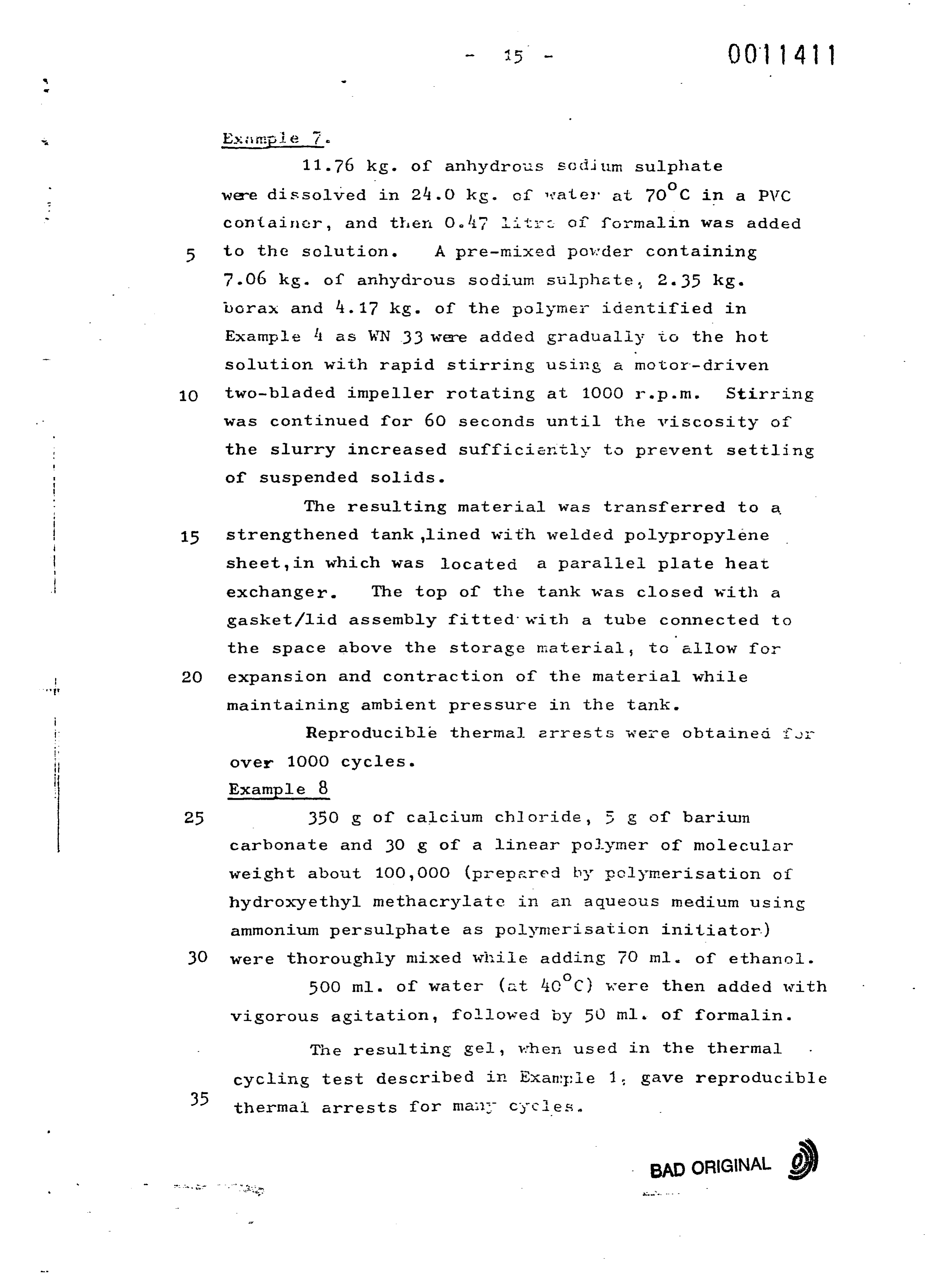

Example 7

11.76 kg. of anhydrous sodium sulphate were dissolved in 24.0 kg. of water at 70°C in a PVC container, and then 0.47 litre of formalin was added to the solution. A pre-mixed powder containing 7.06 kg. of anhydrous sodium sulphate; 2.35 kg. borax and 4.17 kg. of the polymer identified in Example 4 as WN 33 were added gradually to the hot solution with rapid stirring using a motor-driven two-bladed impeller rotating at 1000 r.p.m. Stirring was continued for 60 seconds until the viscosity of the slurry increased sufficiently to prevent settling

The resulting material was transferred to a strengthened tank,lined with welded polypropylene sheet,in which was located a parallel plate heat exchanger. The top of the tank was closed with a gasket/lid assembly fitted with a tube connected to the space above the storage material, to allow for expansion and contraction of the material while maintaining ambient pressure in the tank. Reproducible thermal arrests were obtained for

350 g of calcium chloride, 5 g of barium carbonate and 30 g of a linear polymer of molecular weight about 100,000 (prepared by polymerisation of hydroxyethyl methacrylate in an aqueous medium using ammonium persulphate as polymerisation initiator-) were thoroughly mixed while adding 70 ml. of ethanol. 500 ml. of water (at 40°C) were then added with vigorous agitation, followed by 50 ml. of formalin.

The resulting gel, when used in the thermal cycling test described in Example 1, gave reproducible thermal arrests for many cycles.

Page 17scan →

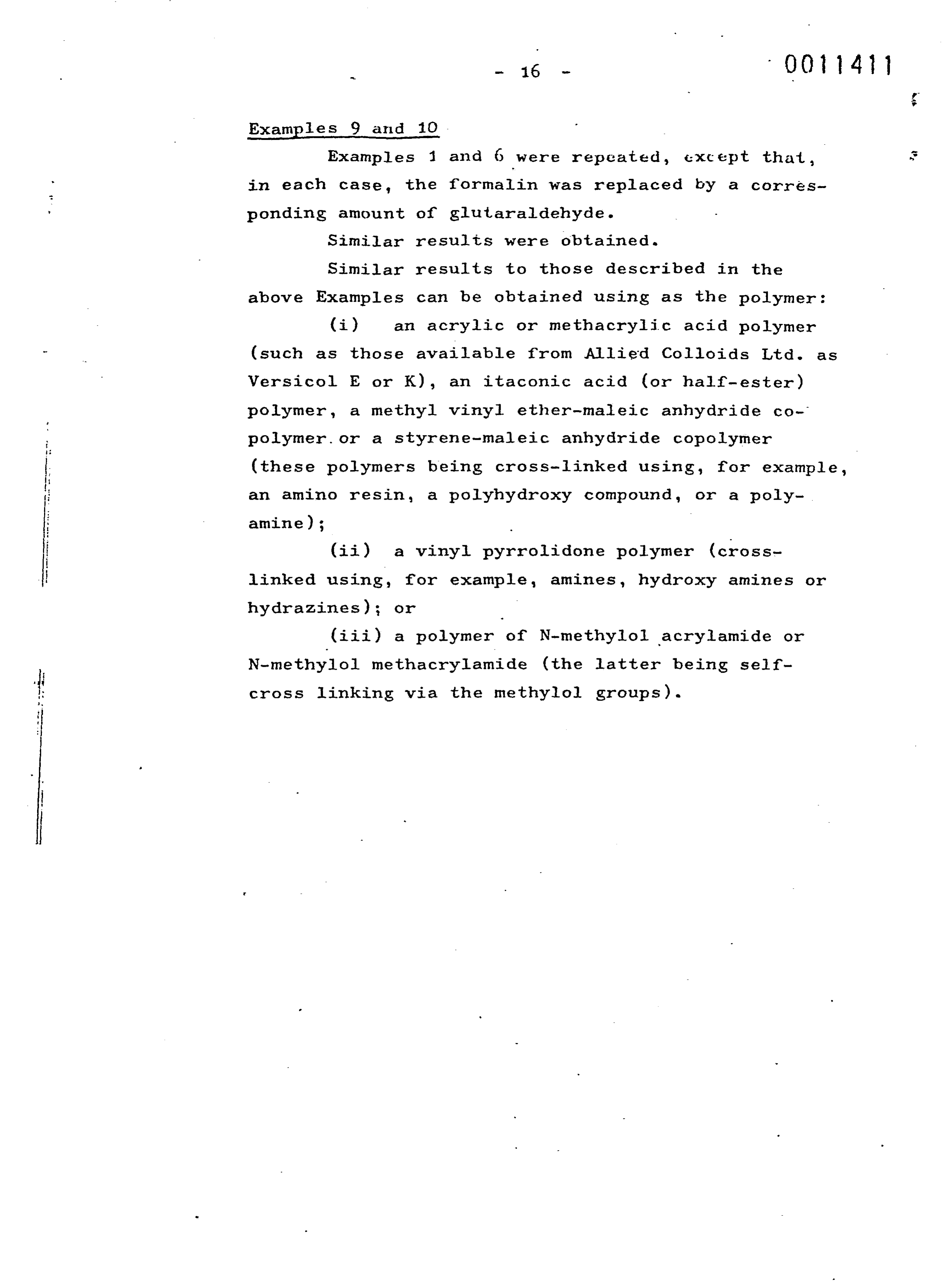

Examples 1 and 6 were repeated, except that, in each case, the formalin was replaced by a corresponding amount of glutaraldehyde.

Similar results to those described in the above Examples can be obtained using as the polymer: (i) an acrylic or methacrylic acid polymer (such as those available from Allied Colloids Ltd. as Versicol E or K), an itaconic acid (or half-ester) polymer, a methyl vinyl ether-maleic anhydride co-- polymer.or a styrene-maleic anhydride copolymer (these polymers being cross-linked using, for example, an amino resin, a polyhydroxy compound, or a polyamine);

(ii) a vinyl pyrrolidone polymer (crosslinked using, for example, amines, hydroxy amines or

(iii) a polymer of N-methylol acrylamide or N-methylol methacrylamide (the latter being selfcross linking via the methylol groups).

Page 18scan →

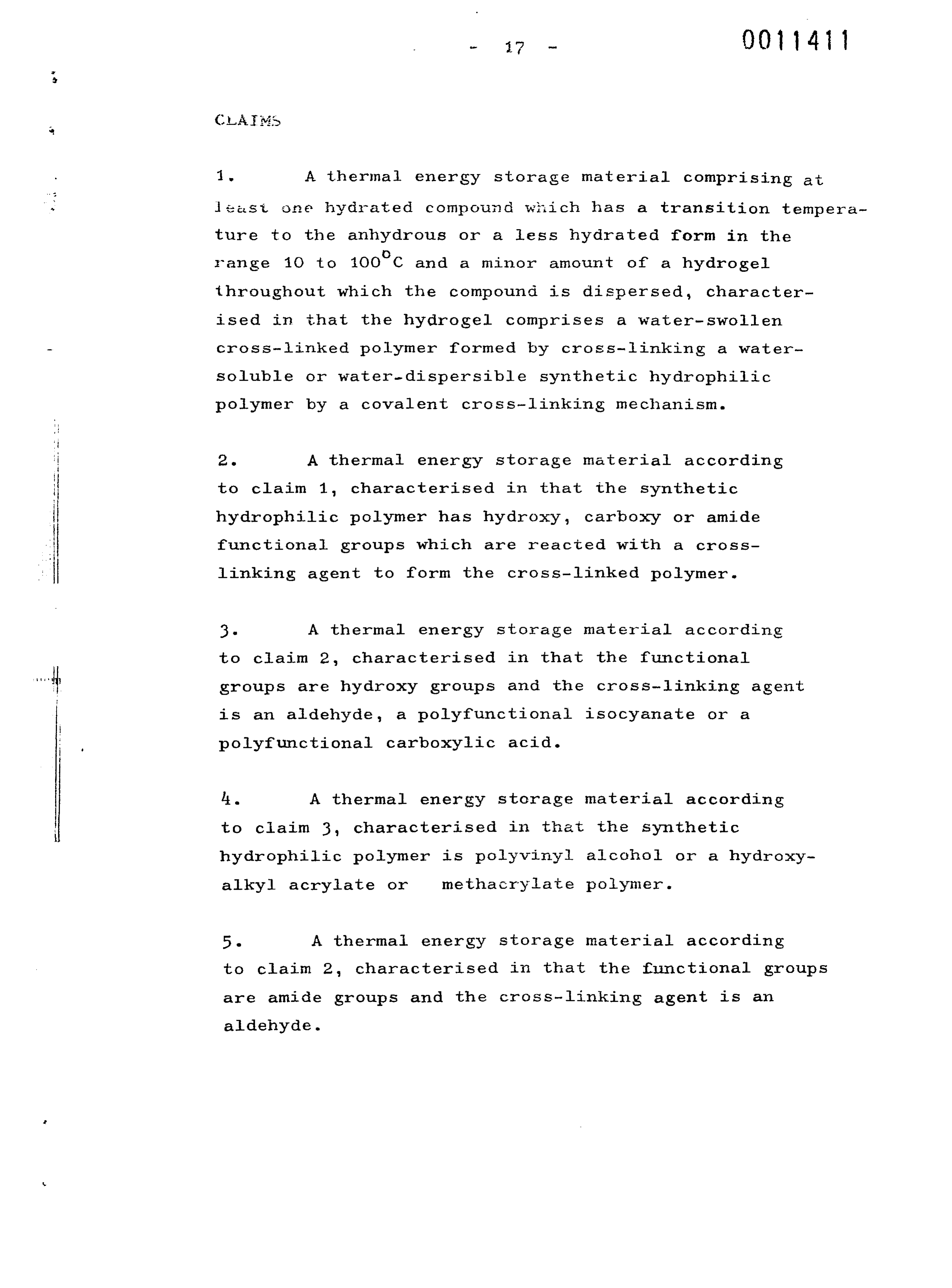

1. A thermal energy storage material comprising at least one hydrated compound which has a transition temperature to the anhydrous or a less hydrated form in the range 10 to 100°C and a minor amount of a hydrogel throughout which the compound is dispersed, characterised in that the hydrogel comprises a water-swollen cross-linked polymer formed by cross-linking a watersoluble or water-dispersible synthetic hydrophilic polymer by a covalent cross-linking mechanism.

2. A thermal energy storage material according to claim 1, characterised in that the synthetic hydrophilic polymer has hydroxy, carboxy or amide functional groups which are reacted with a crosslinking agent to form the cross-linked polymer.

3. A thermal energy storage material according to claim 2, characterised in that the functional groups are hydroxy groups and the cross-linking agent is an aldehyde, a polyfunctional isocyanate or a polyfunctional carboxylic acid.

4. A thermal energy storage material according to claim 3, characterised in that the synthetic hydrophilic polymer is polyvinyl alcohol or a hydroxyalkyl acrylate or methacrylate polymer.

5. A thermal energy storage material according to claim 2, characterised in that the functional groups are amide groups and the cross-linking agent is an aldehyde.

Page 19scan →

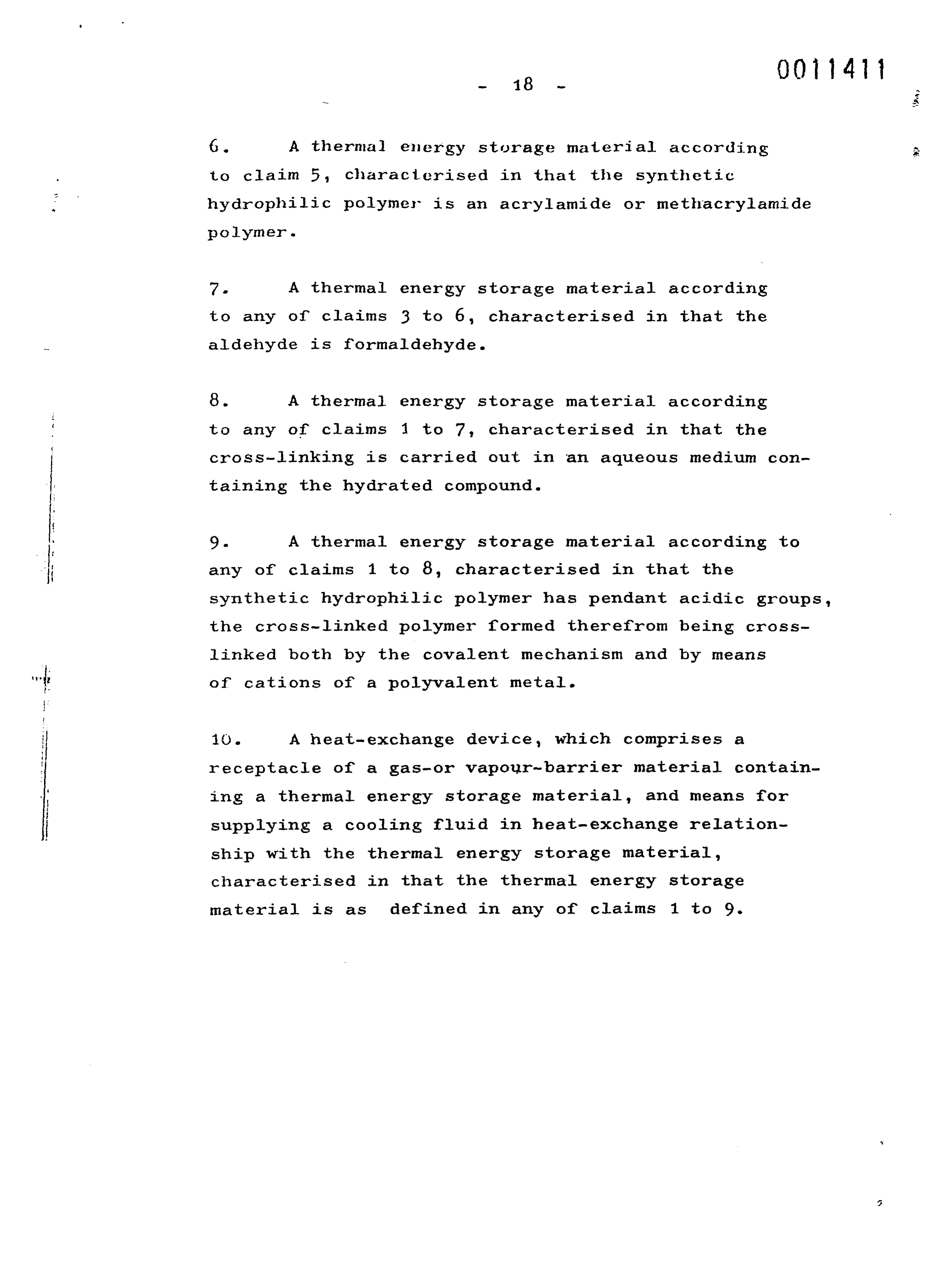

6. A thermal energy storage material according to claim 5, characterised in that the synthetic hydrophilic polymer is an acrylamide or methacrylamide polymer.

7. A thermal energy storage material according to any of claims 3 to 6, characterised in that the aldehyde is formaldehyde.

8. A thermal energy storage material according to any of claims 1 to 7, characterised in that the cross-linking is carried out in an aqueous medium con-

9. A thermal energy storage material according to any of claims 1 to 8, characterised in that the synthetic hydrophilic polymer has pendant acidic groups, the cross-linked polymer formed therefrom being crosslinked both by the covalent mechanism and by means of cations of a polyvalent metal.

10. A heat-exchange device, which comprises a receptacle of a gas-or vapour-barrier material containing a thermal energy storage material, and means for supplying a cooling fluid in heat-exchange relationship with the thermal energy storage material, characterised in that the thermal energy storage material is as defined in any of claims 1 to 9.

Drawings

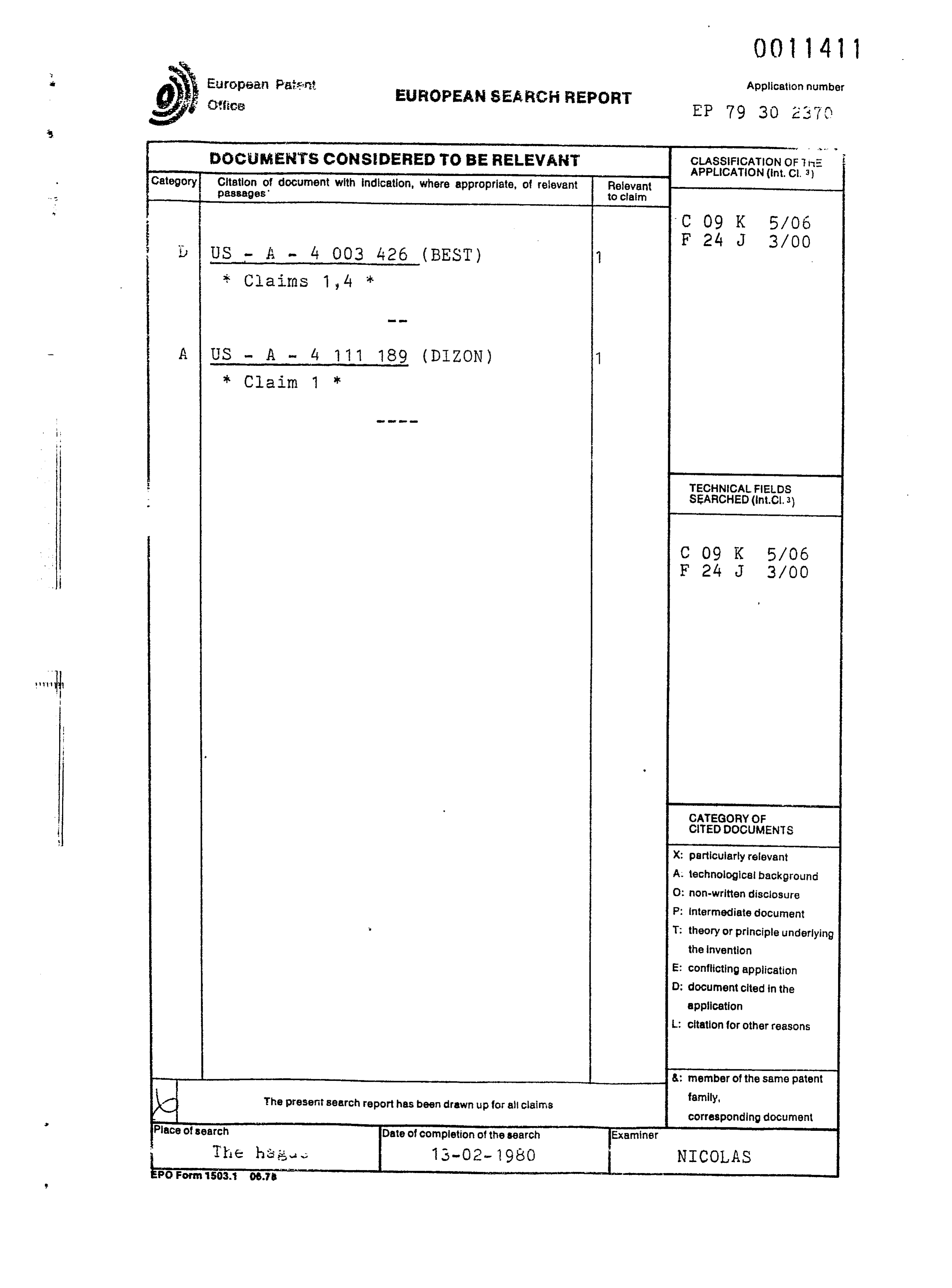

Page 20drawing sheetscan →
