A solar collector with absorber comprising a plurality of spirally coiled tubes defining non-coincident surfaces
11 April 1984
Text
Page 1bibliographic recordscan →
J > ) European Patent Office ni) Publication number: 0 095 1 3 5 Office europeen des brevets A3
EUROPEAN PATENT A P P L I C A T I O N
Application number: 83104883.0 lnt.CI.»:F24J 3/02 Date of filing: 18.05.83
Priority: 21.05.82 IT2143282 Applicant: HYDRO SYSTEM S.R.L, Via De Amicis,
Date of publication of application : 30.1 1.83
Bulletin 83/48
Inventor: Filippetti, Lena, Via De Amicis 6, 1-20020 Solaro
(Milan) (IT)
Designated Contracting States: CH DE FR LI
Date of deferred publication of search Representative: Dr. Ing. A. Racheli &C, VialeSan report: 11.04.84 Bulletin 84/15 Michele del Carso, 4, 1-20144 Milano (IT)

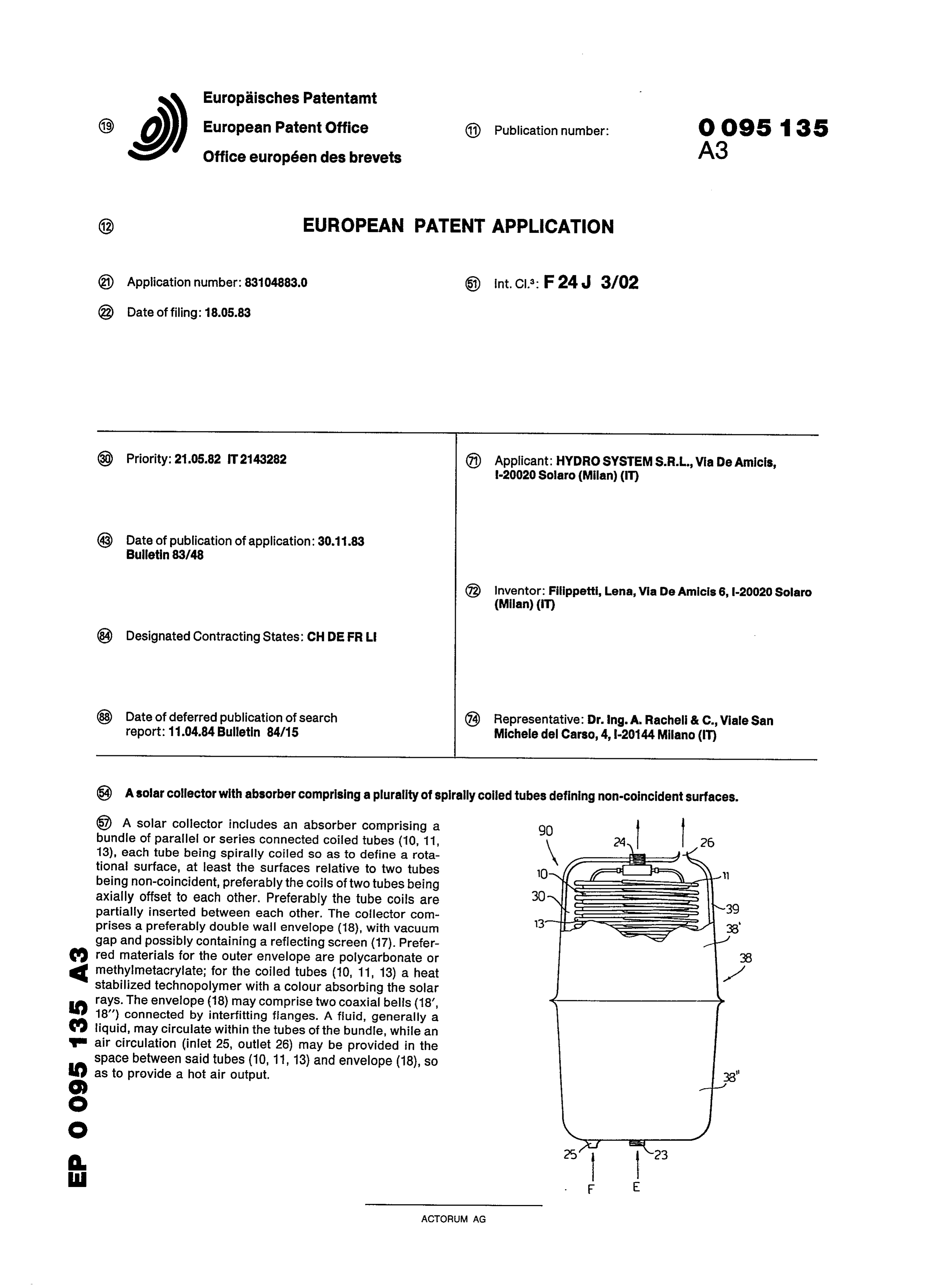

Asolar collector with absorber comprising a plurality of spirally coiled tubes defining non-coincident surfaces. A solar collector includes an absorber comprising a bundle of parallel or series connected coiled tubes (10, 11, 26 13), each tube being spirally coiled so as to define a rotational surface, at least the surfaces relative to two tubes being non-coincident, preferably the coils of two tubes being ^11 axially offset to each other. Preferably the tube coils are partially inserted between each other. The collector comprises a preferably double wall envelope (18), with vacuum gap and possibly containing a reflecting screen (17). Prefer-
C0 red materials for the outer envelope are polycarbonate or 00f methyl metacry late; for the coiled tubes (10, 11, a heat stabilized technopolymer with a colour absorbing the solar -~ rays. The envelope (18) may comprise two coaxial bells (18', "» 18") connected by interfitting flanges. A fluid, generally a
Cv liquid, may circulate within the tubes of the bundle, while an
T™ air circulation (inlet 25, outlet may be provided in the space between said tubes (10, 11, and envelope (18), so O as to provide a hot air output.
