Chris Bakes SigGen V1 and Switch Build

Started by unknown · 7 October 2026 · 4 posts

1. Chris Freedom here

   #1 · 7 Oct 2026

   I'll post progress as I build Chris Bake's SigGen V1 and develop a MOSFET bassed low side switch for it.
   The SigGen is based on the Raspberry Pi Pico 2.



2. Chris Freedom here

   #2 · 7 Oct 2026

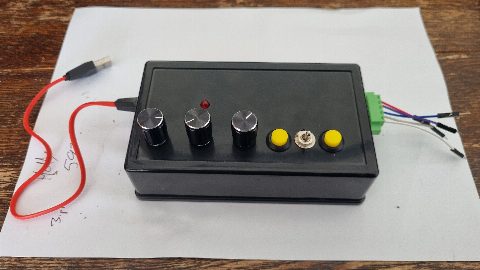

   SigGen V1 prototype completed (for now).

   •

3. Chris Freedom here

   #3 · 7 Oct 2026

   MOSFET switch (1 channel only) prototype V1 built and in testing.
   The Switch uses the ACPL-W343 Optocuppler and Gate driver chip and offers 5KV of isolation to protect the SigGen.

4. Chris Freedom here

   #4 · 7 Oct 2026

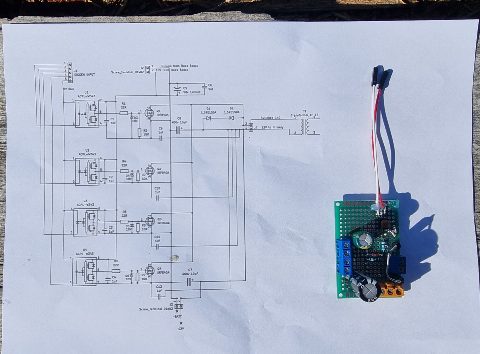

   Switch and schematic, only one channel is built and is in testing phase.

   At the moment, the two TVS diodes are clamping the HV around 150 volts for testing.

   Edited 7 Oct 2026 by Chris Freedom.

   •
