patent · USD275876S
Solar heater
9 October 1984
Text

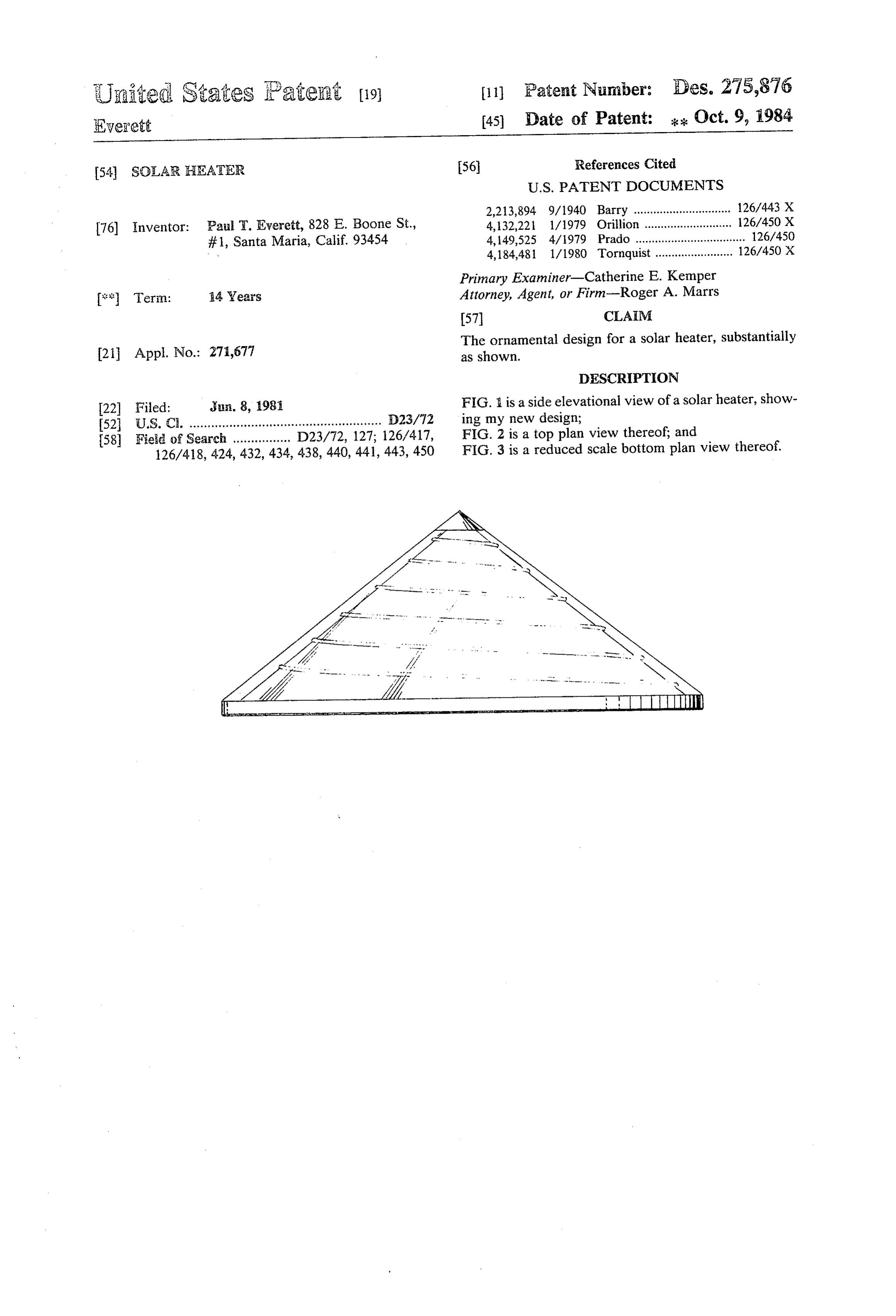

Page 1scan →
EUraited States Patera (19)
Everett
54 solar heater
76) Inventor: Paul T. Everett, 828 E. Boone St., #1, Santa Maria, Calif. 93454
52 u.s.c. ..................................................... d23/72
2,213,894 9/1940 Barry .............................. 126/443 X 4,132,221 1/1979 Orillion .... ... 26/450 X 4,149,525 4/1979 Prado .................................. 126/450 4,184,481 1/1980 Tornquist ........................ 126/450 X Primary Examiner-Catherine E. Kemper
Attorney, Agent, or Firm-Roger A. Marrs
The ornamental design for a solar heater, substantially as shown.
Description

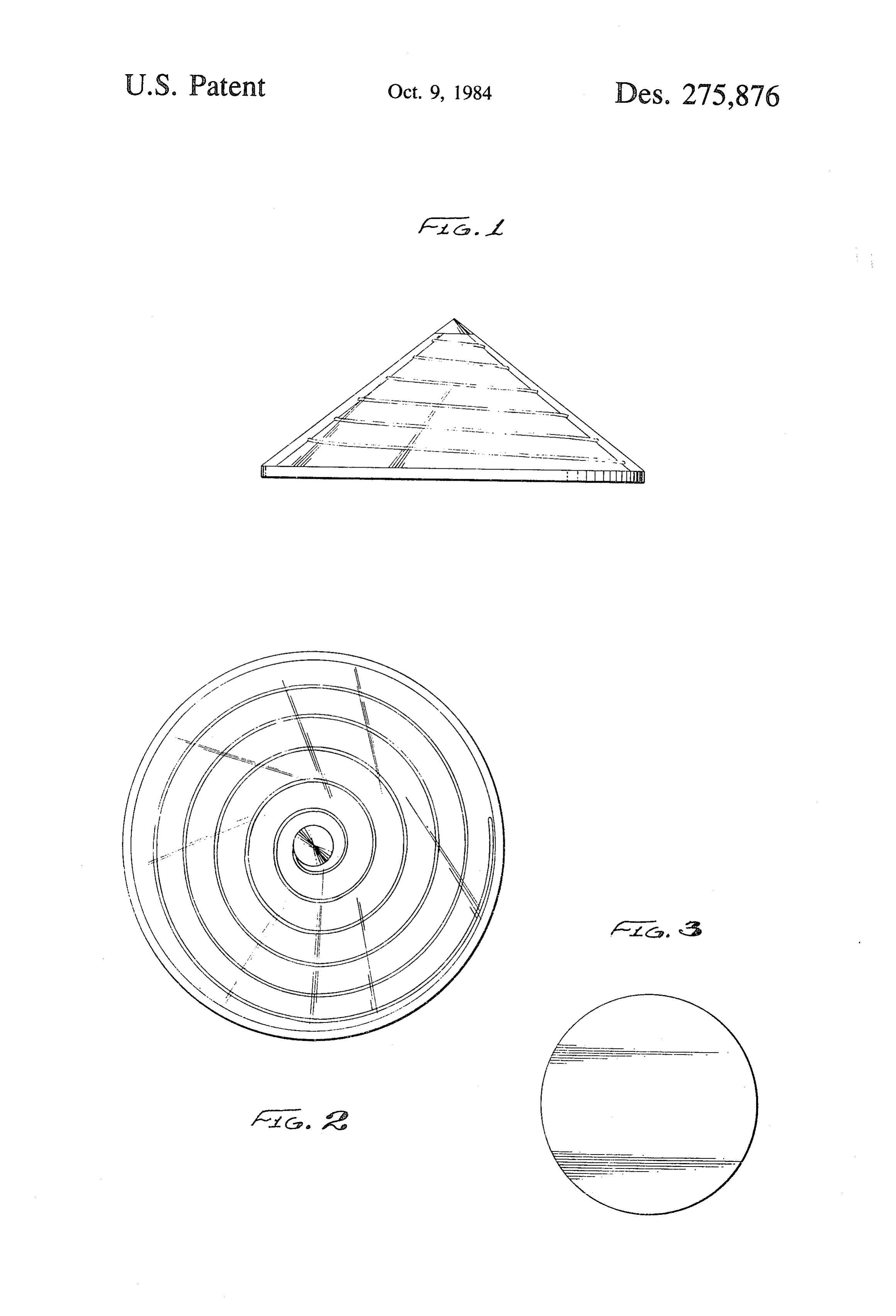

FIG. is a side elevational view of a solar heater, show ing my new design;
FIG. 2 is a top plan view thereof; and
FIG. 3 is a reduced scale bottom plan view thereof.
Drawings
FIG. 2 is a top plan view thereof; and
FIG. 3 is a reduced scale bottom plan view thereof.
Page 2drawing sheetscan →
